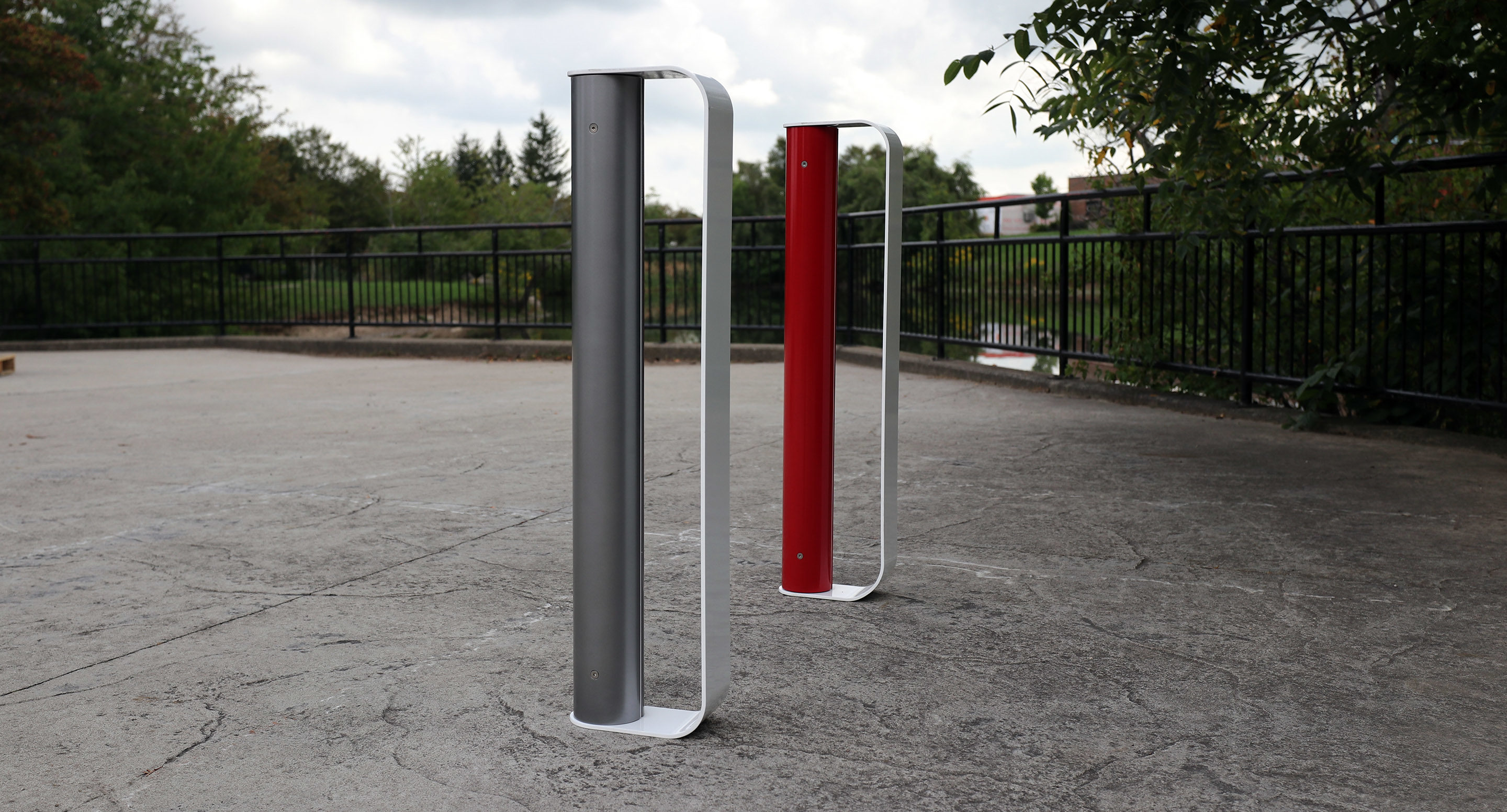

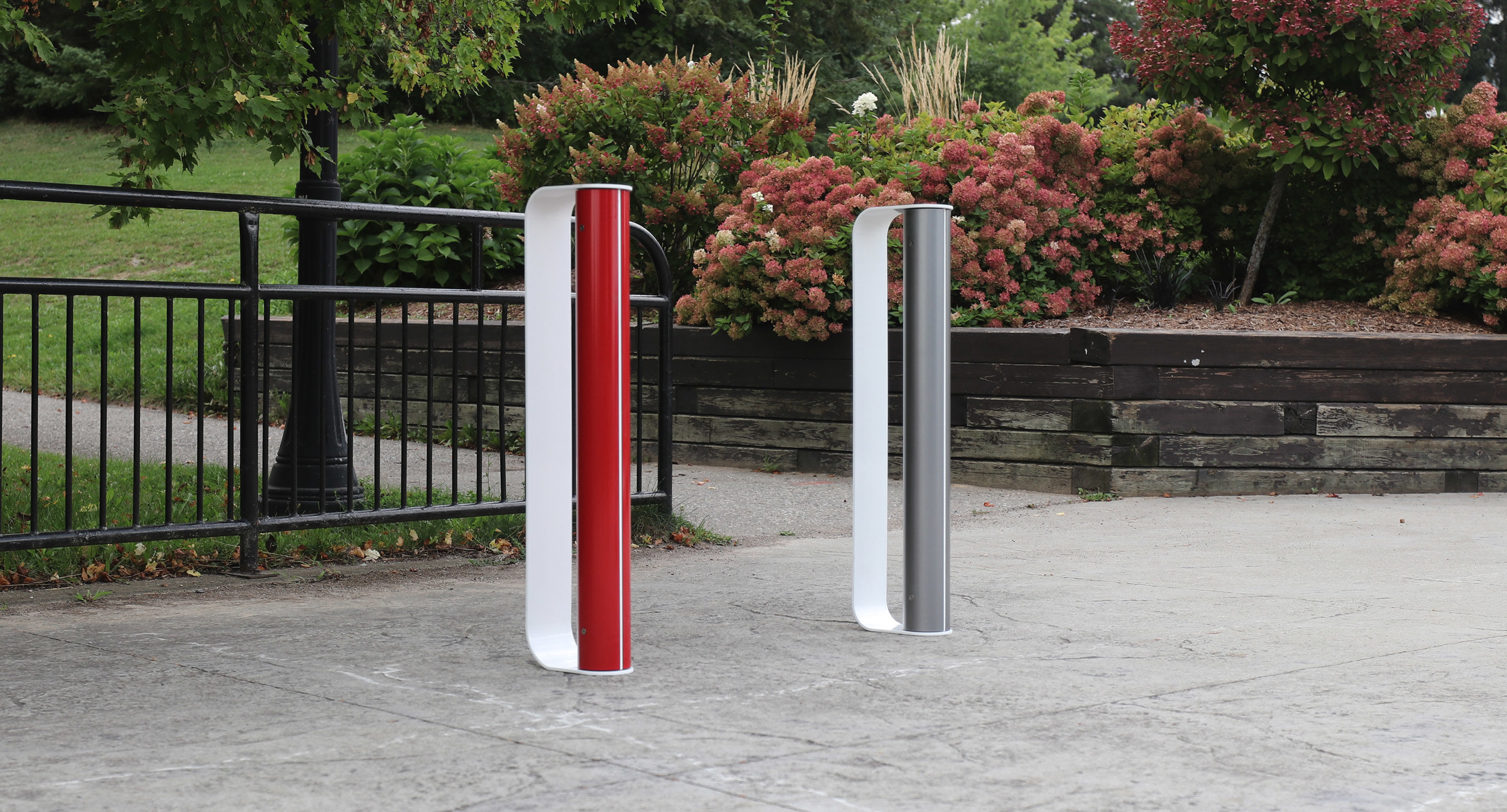

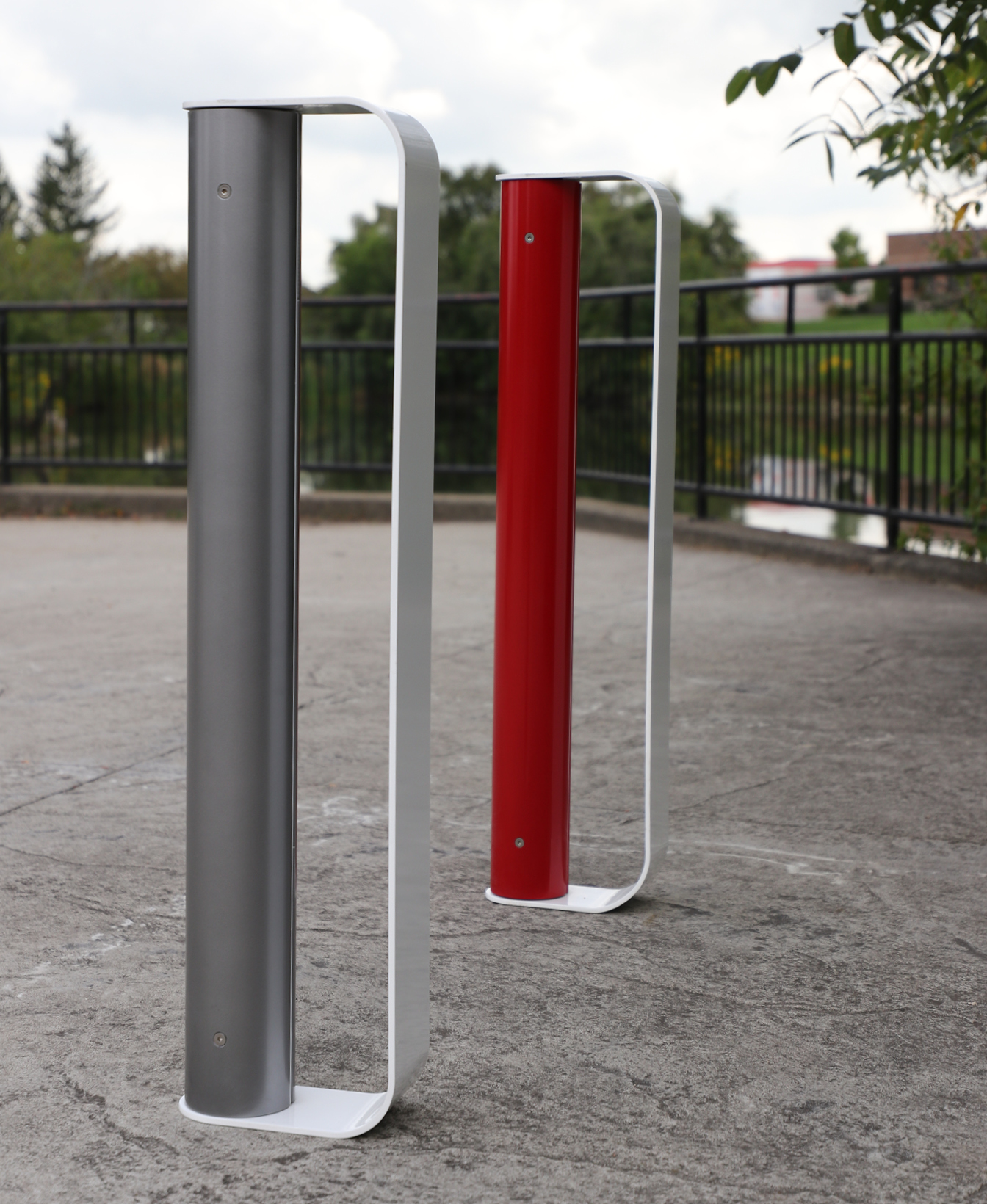

MUG Bike Racks painted Red and White, Gunmetal and White at parkMUG Bike Racks painted Red and White, Gunmetal and White at park
Gunmetal, white and red MUG Bike Racks on a school campusGunmetal, white and red MUG Bike Racks on a school campus
MUG Bike Racks painted gloss green and gunmetal in front of school buildingMUG Bike Racks painted gloss green and gunmetal in front of school building
MUG Bike Racks painted gloss blue, magenta, yellow and turquoiseMUG Bike Racks painted gloss blue, magenta, yellow and turquoise

2900 Series

MUG Bike Rack

Designer: GIBILLERO Design

A solid bike rack with a minimal footprint, the 2900 Series – MUG Bike Rack features a vertical design allowing for single units in smaller spaces or grouped configurations. The all steel welded frame and tube post design can perform double duty as a bollard option for pedestrian areas and may be powdercoated in contrasting colors.

Click Quick Quote to receive model number and pricing.

Quick Links

Material Options
  • Steel
Options
  • Direct Burial
  • Surface Mount
Sustainability Facts
  • Carbon footprint (GWP): 153kg CO2-Eq (mean)
  • Material Recyclability: 100%
  • LEED v4.1 Credits
Finishes

All steel components are protected with E-Coat Rust Proofing. The Maglin Powdercoat System provides a durable finish on all metal surfaces.

Installation

The 2900 Series - MUG Bike Rack is delivered pre-assembled. The bike rack is available with a surface mount installation using 2 holes (9/16”) for securing the base. The bike rack is also available with a direct burial installation. The H.S. steel direct burial post mounts on the base of the bike rack and is designed to sit approximately 18 inches below grade.

Standard Powdercoat Colors
Gloss Collection
Green
RAL 6037
Turquoise
RAL 5018
Reseda Green
RAL 6011
Pastel Blue
RAL 5024
Blue
RAL 5005
Violet Blue
RAL 5000
Salmon Orange
RAL 2012
Pebble Grey
RAL 7032
Red
RAL 3002
Orange
RAL 2009
Saffron Yellow
RAL 1017
Yellow
RAL 1018
White
RAL 9016
Black
RAL 9005
Gunmetal
Titanium
Silver 14
Bronze 14
Fine Textured Collection* (matte finish)
Black
Gunmetal
Titanium
Silver 14
Bronze 14
Corten
Due to variations in screen resolution, color swatches may vary slightly from actual colors. Please contact Maglin for samples.

*Fine Textured Paint available for an upcharge. Not available on metal table tops and stacking chairs, or for vinyl graphic application.

Download Color Chart

Steel
Image Model Description Depth Height Height Above Grade Height Below Grade Length Weight

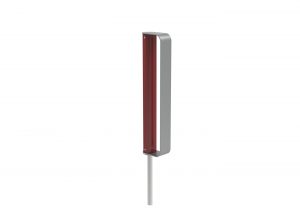

MUG Bike Rack, Steel, Direct Burial MBR-2900-00002 2900 Series - MUG Bike Rack: Steel Frame, Direct Burial, 2 Bike Configuration 4.5” (11.4cm) 37.5” (95.3cm) 37.5” (95.3cm) 18” (45.7cm) 9” (22.9cm) 54.8lbs (24.9kg)

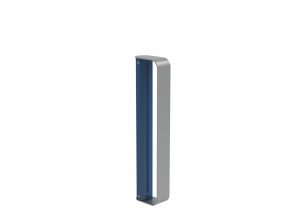

MUG Bike Rack, Steel, Surface Mount MBR-2900-00001 2900 Series - MUG Bike Rack: Steel Frame, Surface Mount, 2 Bike Configuration 4.5” (11.4cm) 37.5” (95.3cm) 37.5” (95.3cm) 9” (22.9cm) 50.3lbs (22.8kg)
