MBE-0870 Ipe Wood Bench featuring Rusty the dogMBE-0870 Ipe Wood Bench featuring Rusty the dog
Backed and Backless Benches Under a PavillionBacked and Backless Benches Under a Pavillion
MBE-0870-00009: 870 Backed Metal Bench with MBE-0870-00009: 870 Backed Metal Bench with
Benches outside an old buildingBenches outside an old building
MBE-0870-00049: 870 Backless Metal Bench painted Silver 14 in park settingMBE-0870-00049: 870 Backless Metal Bench painted Silver 14 in park setting
Backed Benches near playgroundBacked Benches near playground
Mounted Benches Near RoadMounted Benches Near Road

800 Series

870 Backed / Backless Benches

Clean, contemporary design with classic appeal. The 800 Series – 870 Bench is a traditional park bench reimagined for the modern urban setting. In backed or backless versions, wall mount or cantilever installation options, and available in a variety of sustainable materials, the integrative design of 800 Series – 870 Benches makes it easy to find a space to add effortlessly stylish seating.

Click Quick Quote to receive model number and pricing.

Quick Links

Product Info

Material Options
  • Metal
  • Ipe Wood
  • Thermally Modified Ash Wood
Options
  • Skate Deterrent
  • Plaque
  • Center Arm
  • Backed
  • Backless
  • Cantilever
  • Wall Mount
  • Side Arms
  • Armless (Backless Only)
Finishes

All steel components are protected with E-Coat Rust Proofing. The Maglin Powdercoat System provides a durable finish on all metal surfaces. Ipe wood slats are finished with penetrating sealers.

Installation

The 800 Series - 870 Backed and Backless Benches are delivered pre-assembled. Holes (0.5") are provided in each foot, cantilever mounting bracket or wall-mount bracket for securing to base.

Standard Powdercoat Colors
Gloss Collection
Green
RAL 6037
Turquoise
RAL 5018
Reseda Green
RAL 6011
Pastel Blue
RAL 5024
Blue
RAL 5005
Violet Blue
RAL 5000
Red
RAL 3002
Orange
RAL 2009
Saffron Yellow
RAL 1017
Yellow
RAL 1018
White
RAL 9016
Black
Gunmetal
Titanium
Silver 14
Bronze 14
Fine Textured Collection* (matte finish)
Black
Gunmetal
Titanium
Silver 14
Bronze 14
Corten
Due to variations in screen resolution, color swatches may vary slightly from actual colors. Please contact Maglin for samples. *Fine Textured Paint available for an upcharge. Not available on metal table tops and stacking chairs, or for vinyl graphic application.
Download Color Chart

Dimensions

Ipe Wood
Image Model Description Depth Height Length Seat Height Weight
Auburn Bench with Arms MBE-0870-00006 800 Series - 870 Backed Wall Mount Bench: 69.5in L, Cast Aluminum Ends, Ipe Wood Seat and Back, Two End Arms 24” (61.0cm) 18” (45.7cm) 69.5” (176.5cm) 3.6” (9.2cm) 116.8lbs (53.0kg)
Backed Bench with End Arms MBE-0870-00025 800 Series - 870 Backed Bench: 69.5in L, Cast Aluminum Ends, Ipe Wood Seat and Back, Two End Arms 24” (61.0cm) 32.2” (81.8cm) 69.5” (176.5cm) 18.6” (47.1cm) 121.6lbs (55.2kg)
Brown Backless Bench with Mount and Arms MBE-0870-00039 800 Series - 870 Backless Cantilever Bench: 69.5in L, Cast Aluminum Ends, Ipe Wood Seat, Two End Arms 18.1” (46.0cm) 17.4” (44.1cm) 69.5” (176.5cm) 88.2lbs (40.0kg)
Auburn Backless Bench MBE-0870-00046 800 Series - 870 Backless Wall Mount Bench: 69.5in L, Cast Aluminum Ends, Ipe Wood Seat 16.6” (42.1cm) 3.8” (9.7cm) 69.5” (176.5cm) 74.9lbs (34.0kg)
Auburn Backless Bench with Arms MBE-0870-00047 800 Series - 870 Backless Wall Mount Bench: 69.5in L, Cast Aluminum Ends, Ipe Wood Seat, Two End Arms 17.3” (43.8cm) 7.6” (19.2cm) 69.5” (176.5cm) 77.9lbs (35.3kg)
Brown Backless Bench with Mount MBE-0870-00038 800 Series - 870 Backless Cantilever Bench: 69.5in L, Cast Aluminum Ends, Ipe Wood Seat 17.8” (45.1cm) 13.6” (34.6cm) 69.5” (176.5cm) 85.3lbs (38.7kg)
Backless Bench with in Brown and Grey MBE-0870-00061 800 Series - 870 Backless Bench: 69.5in L, Cast Aluminum Ends, Ipe Wood Seat 17.7” (44.9cm) 18.5” (47.0cm) 69.5” (176.5cm) 18.3” (46.5cm) 78lbs (35.4kg)
Backless Bench with Arms MBE-0870-00062 800 Series - 870 Backless Bench: 69.5in L, Cast Aluminum Ends, Ipe Wood Seat, Two End Arms 17.7” (44.9cm) 22.3” (56.5cm) 69.5” (176.5cm) 18.3” (46.5cm) 81lbs (36.7kg)
Brown Backed Bench with Arms on Either Side MBE-0870-00074 800 Series - 870 Backed Cantilever Bench: 69.5in L, Cast Aluminum Ends, Ipe Wood Seat and Back, Two End Arms 25” (63.5cm) 27.8” (70.6cm) 69.5” (176.5cm) 131.4lbs (59.6kg)
Metal
Image Model Description Depth Height Length Seat Height Weight
Grey Backed Bench with End Arms MBE-0870-00009 800 Series - 870 Backed Bench: 69.5inL, Cast Aluminum Ends, Metal Seat and Back, Two End Arms 24.4” (62.1cm) 32.2” (81.8cm) 69.5” (176.5cm) 18.6” (47.3cm) 109.5lbs (49.7kg)
Backed Bench with Side Arms MBE-0870-00001 800 Series - 870 Backed Wall Mount Bench: 69.5in L, Cast Aluminum Ends, Metal Seat and Back, Two End Arms 24” (61.0cm) 18” (45.7cm) 69.5” (176.5cm) 3.6” (9.2cm) 105lbs (47.6kg)
Backed Grey Bench with Middle and Side Arms MBE-0870-00002 800 Series - 870 Backed Wall Mount Bench: 69.5in L, Cast Aluminum Ends, Metal Seat and Back, Two End Arms, Center Arm 24” (61.0cm) 18” (45.7cm) 69.5” (176.5cm) 3.6” (9.2cm) 110lbs (49.9kg)
Grey Backless Bench with Horizontal Slats MBE-0870-00049 800 Series - 870 Backless Bench: 69.5in L, Cast Aluminum Ends, Metal Seat 17.7” (44.9cm) 18.5” (47.0cm) 69.5” (176.5cm) 18.3” (46.5cm) 63.6lbs (28.8kg)
Backless Bench with Arms MBE-0870-00050 800 Series - 870 Backless Bench: 69.5in L, Cast Aluminum Ends, Metal Seat, Two End Arms 17.7” (44.9cm) 22.3” (56.5cm) 69.5” (176.5cm) 18.3” (46.5cm) 66.5lbs (30.2kg)
Grey Bench with Arms on Either Side MBE-0870-00065 800 Series - 870 Backed Cantilever Bench: 69.5in L, Cast Aluminum Ends, Metal Seat and Back, Two End Arms 25” (63.5cm) 27.8” (70.6cm) 69.5” (176.5cm) 119.3lbs (54.1kg)
Backless Bench with Horizontal Slats MBE-0870-00085 800 Series - 870 Backless Cantilever Bench: 69.5in L, Cast Aluminum Ends, Metal Seat 17.8” (45.1cm) 13.6” (34.6cm) 69.5” (176.5cm) 70.8lbs (32.1kg)
Backless Bench With Arms and Horizontal Slats on Seat MBE-0870-00086 800 Series - 870 Backless Cantilever Bench: 69.5in L, Cast Aluminum Ends, Metal Seat, Two End Arms 18.1” (46.0cm) 17.4” (44.1cm) 69.5” (176.5cm) 73.7lbs (33.4kg)
Backless Bench Seat Mounted from Seat MBE-0870-00102 800 Series - 870 Backless Wall Mount Bench: 69.5in L, Cast Aluminum Ends, Metal Seat 16.6” (42.1cm) 3.8” (9.7cm) 69.5” (176.5cm) 60.6lbs (27.5kg)
Thermally Modified Ash Wood
Image Model Description Depth Height Length Seat Height Weight
MBE-0870-00141: 800 Series - 870 Backed Bench, Thermally Modified Ash Wood MBE-0870-00141 800 Series - 870 Backed Bench: 69.5in L, Cast Aluminum Ends, Thermally Modified Ash Wood Seat and Back, Two End Arms 24” (61.0cm) 32.2” (81.8cm) 69.5” (176.5cm) 18.6” (47.1cm)
MBE-0870-00150: 800 Series - 870 Backless Bench, Thermally Modified Ash Wood MBE-0870-00150 800 Series - 870 Backless Bench: 69.5in L, Cast Aluminum Ends, Thermally Modified Ash Wood Seat 17.7” (44.9cm) 18.5” (47.0cm) 69.5” (176.5cm) 18.3” (46.5cm)
MBE-0870-00152: 800 Series - 870 Backless Bench, Side Arms, Thermally Modified Ash Wood MBE-0870-00152 800 Series - 870 Backless Bench: 69.5in L, Cast Aluminum Ends, Thermally Modified Ash Wood Seat, Two End Arms 17.7” (44.9cm) 22.3” (56.5cm) 69.5” (176.5cm) 18.3” (46.5cm)

Downloads

Projects

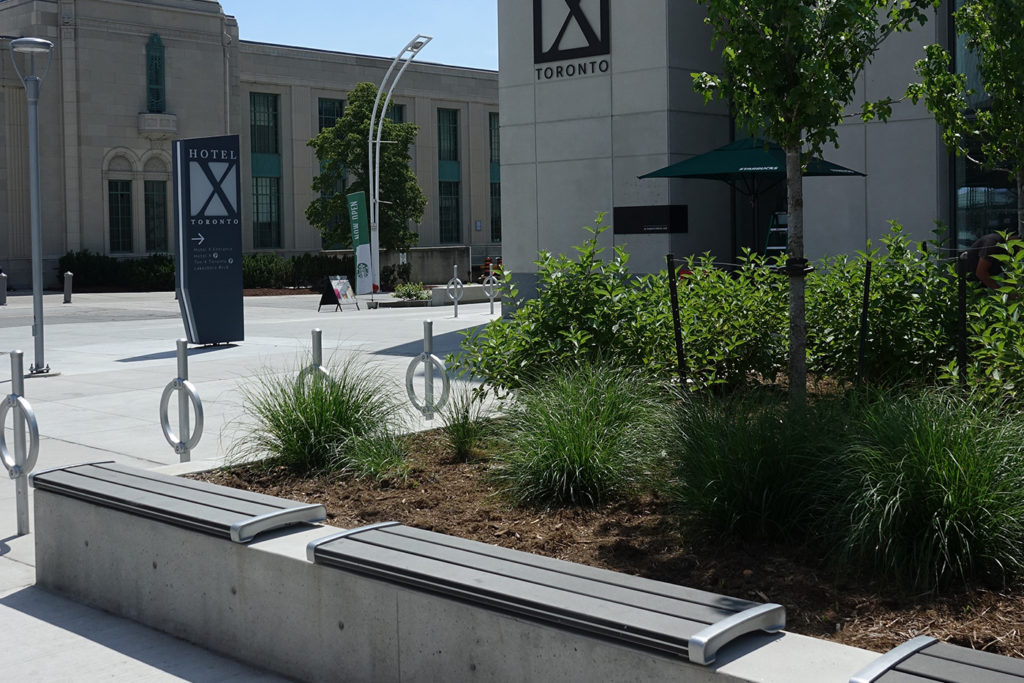

Hotel X Toronto wall mount benches and bike racks

Hotel X Toronto

High style and eco-conscious design are often perceived as mutually exclusive. Hotel X Toronto-the latest addition to the Library Hotel Collection’s portfolio of international boutique hotel…

Read More

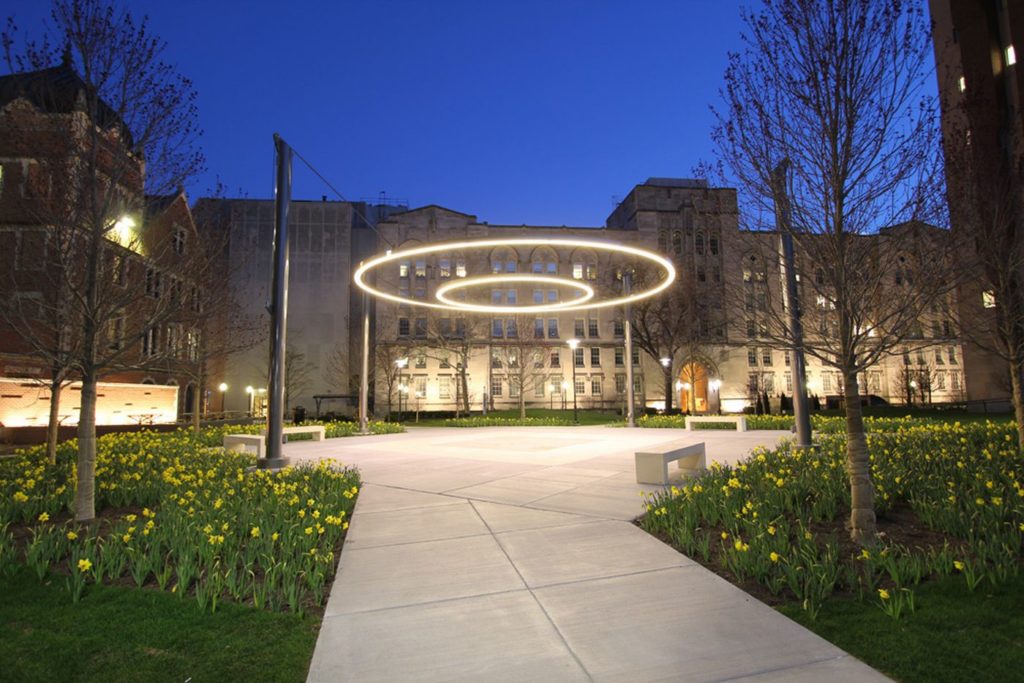

Crerar Quad circle of light suspending in the sky at night

Crerar Quad – University of Chicago

The Crerar Science Quadrangle is a “hub” on Campus West near the very heart of the U of Chicago campus. The University wanted to create…

Read More
