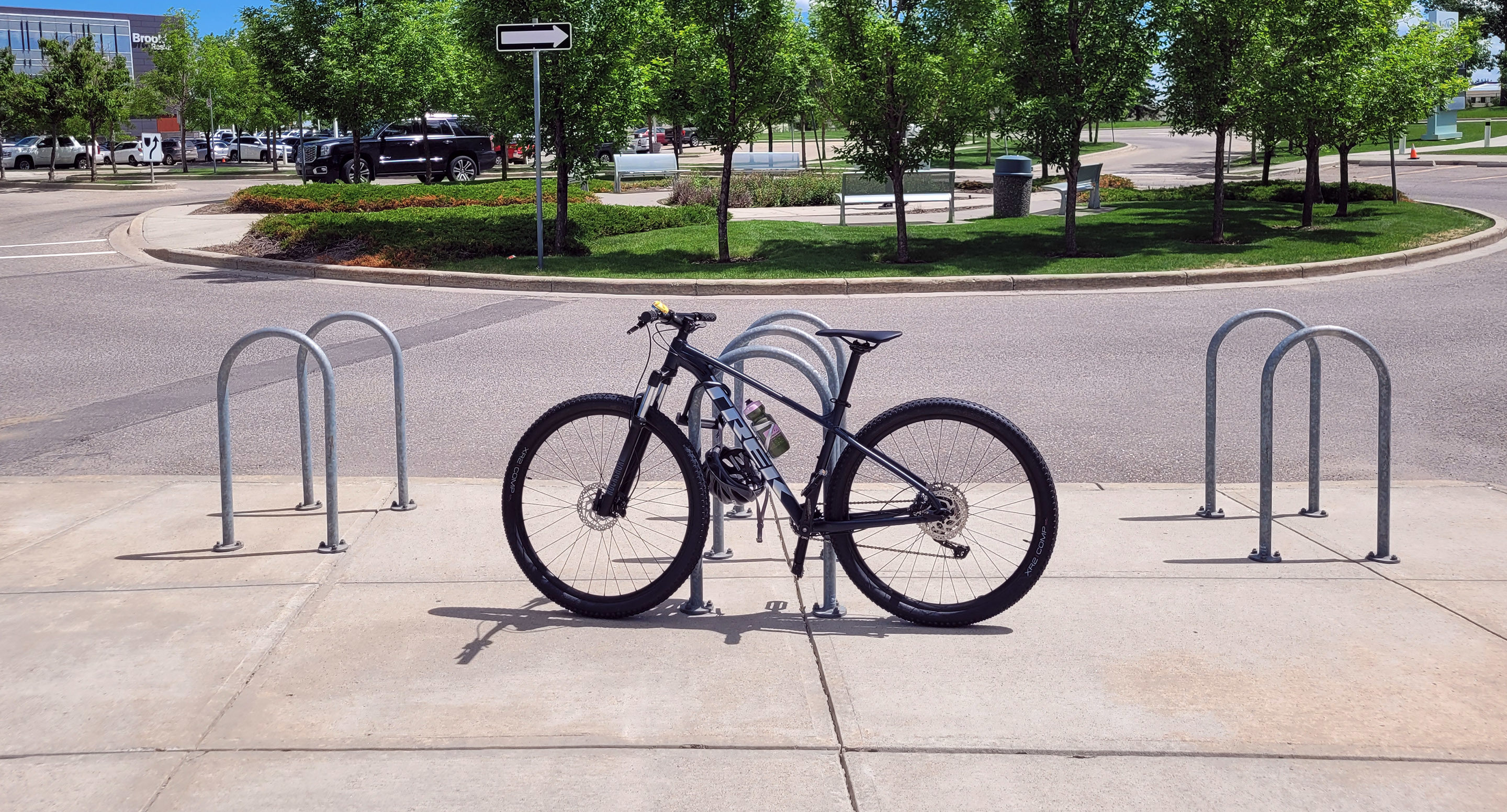

MBR-0500 Bike Racks, galvanized with bicycle locked in placeMBR-0500 Bike Racks, galvanized with bicycle locked in place

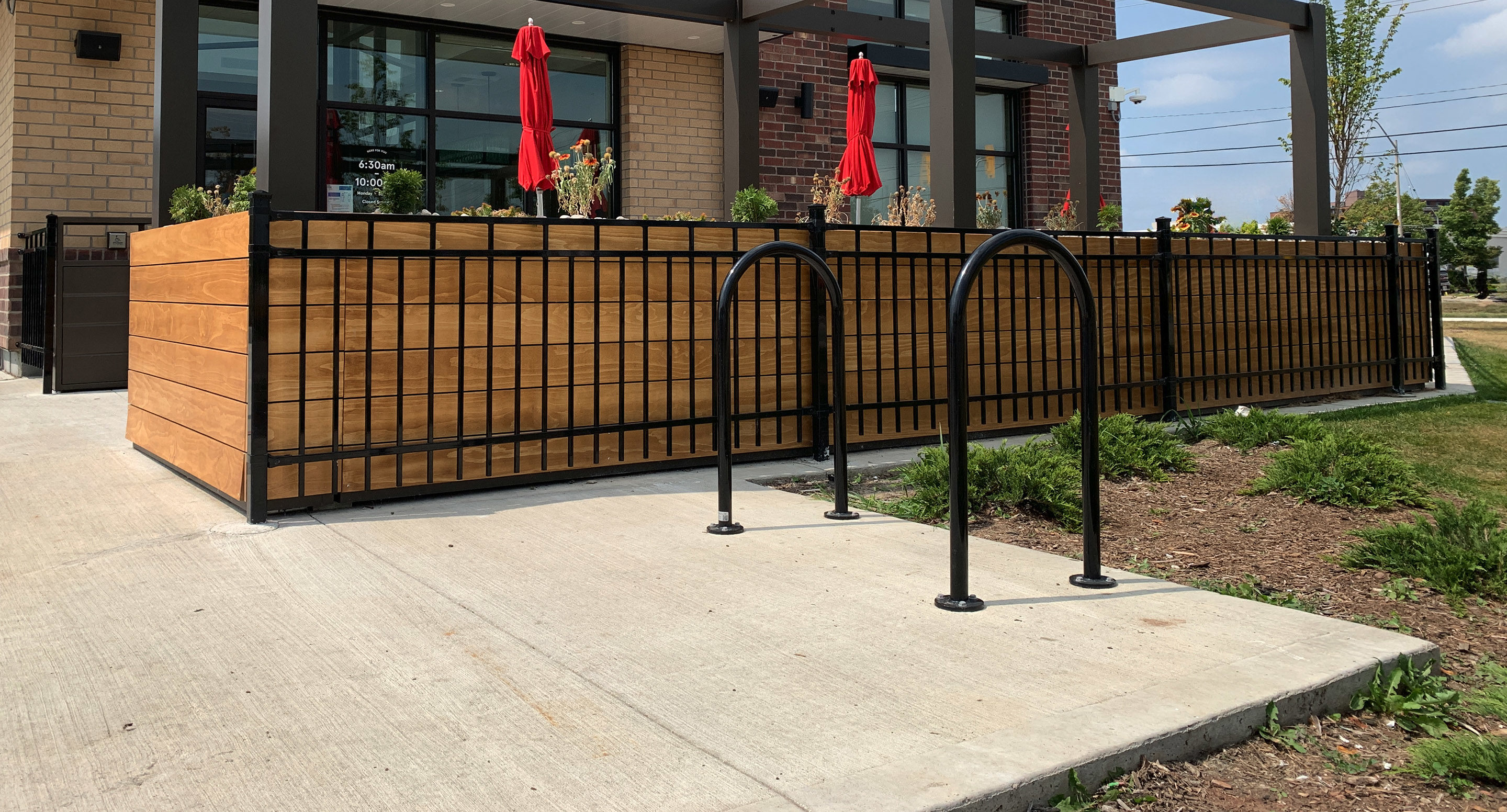

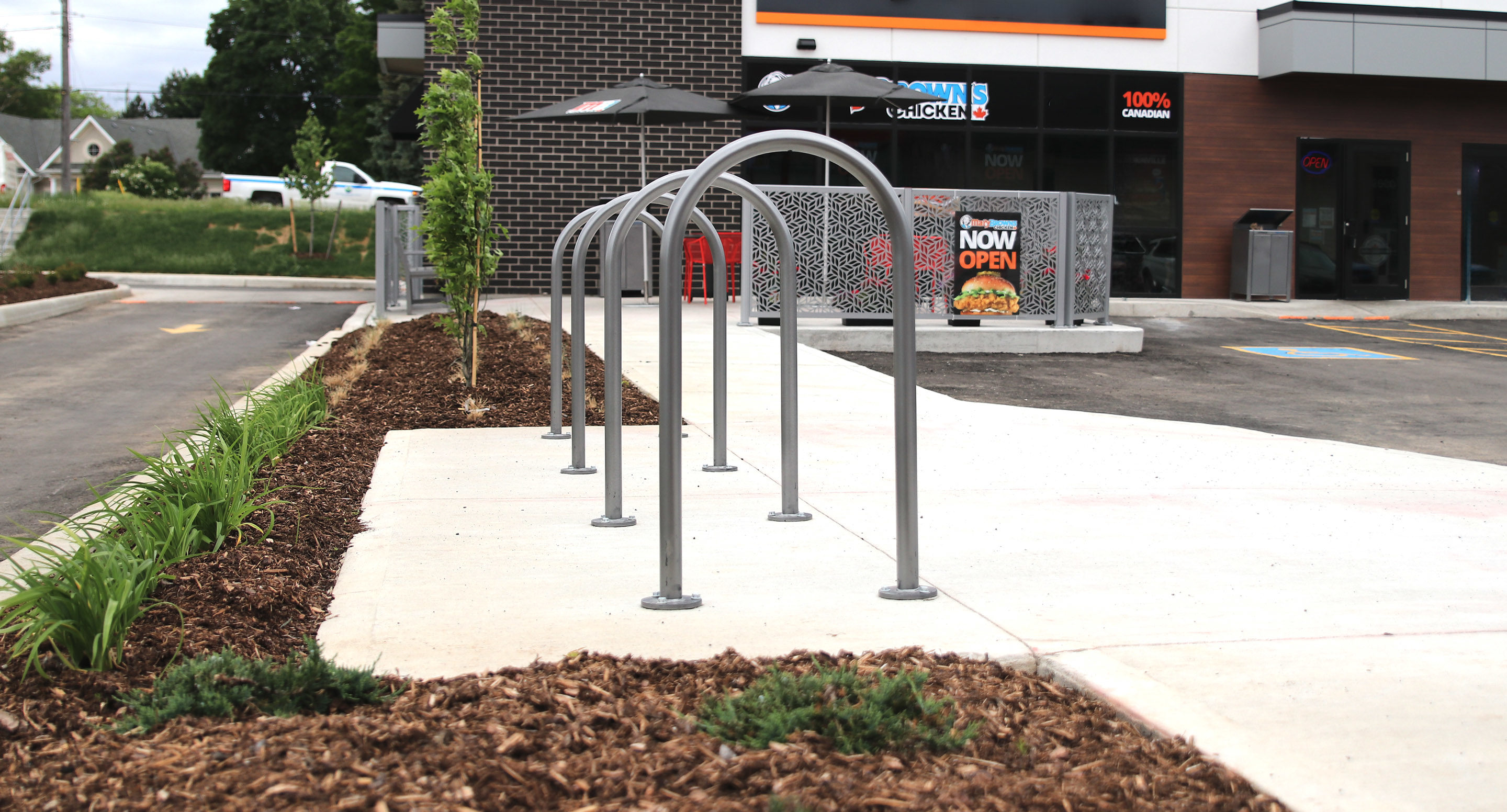

MBR-0500 Bike Racks in front of Mary Browns ChickenMBR-0500 Bike Racks in front of Mary Browns Chicken
MBR-0500 Bike Racks in front of Chick-fil-aMBR-0500 Bike Racks in front of Chick-fil-a

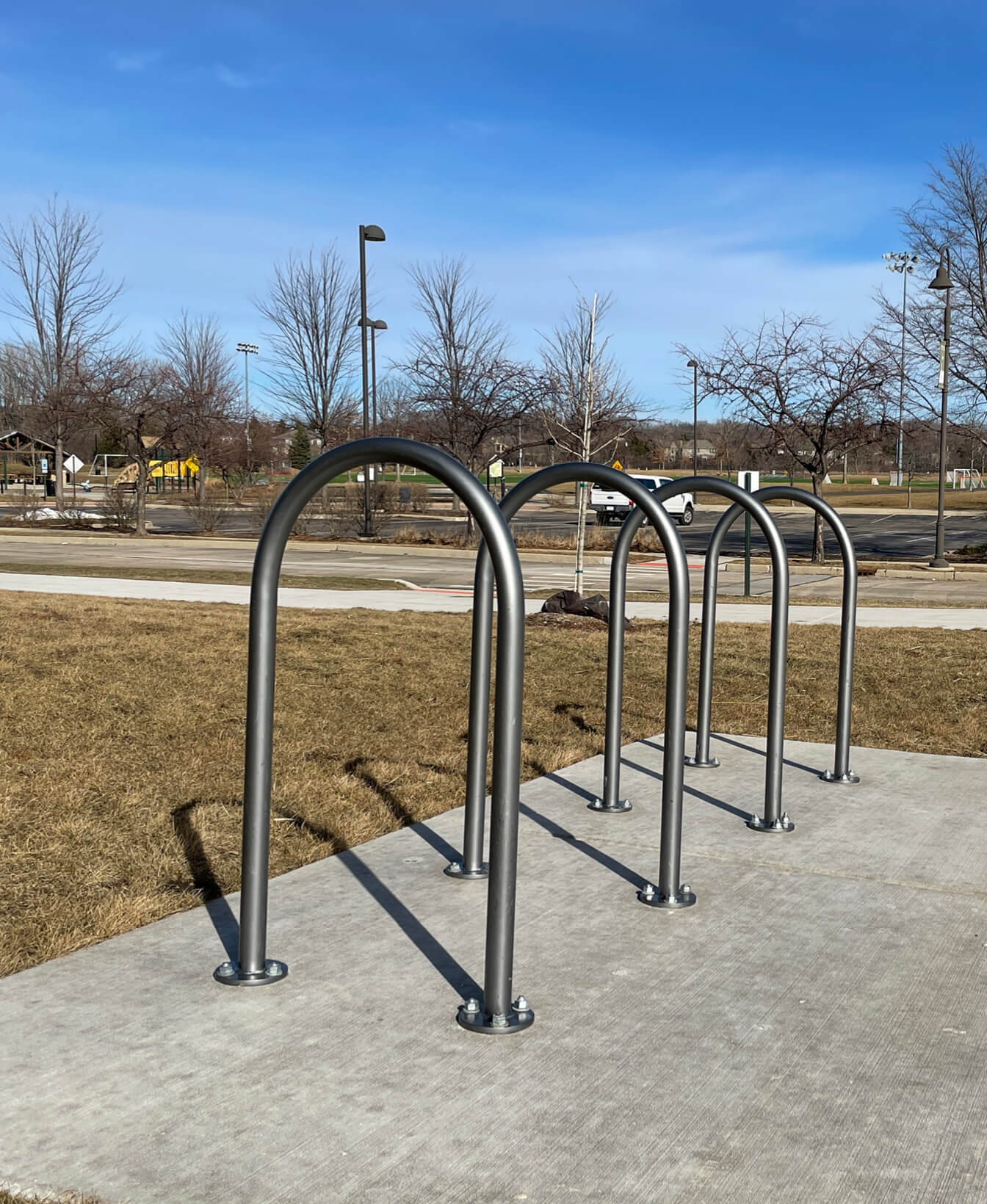

500 Series and 300 Series Bike Racks, direct burial with park in background500 Series and 300 Series Bike Racks, direct burial with park in background

500 Series

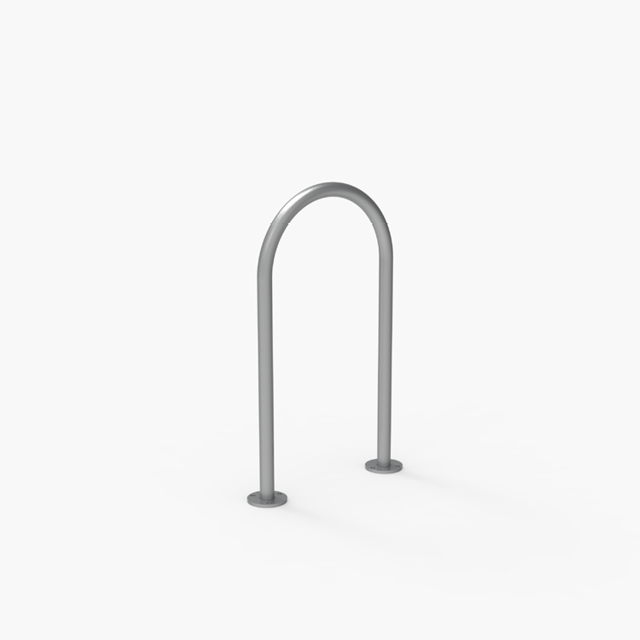

500 Bike Racks

The 500 Series – 500 Bicycle Rack is all simple functionality, combining security with a design that blends seamlessly with other site amenities. Available in surface mount and direct burial options, the 500 Series – 500 Bicycle Rack is easy to use and offers unfaltering stability.

Click Quick Quote to receive model number and pricing.

Quick Links

Product Info

Material Options
  • H.S. Steel Tube
Options
  • Direct Burial
  • Surface Mount
Sustainability Facts
  • Carbon footprint (GWP): 83.4 kg CO2-Eq (mean)
  • Material Recyclability: 100%
  • LEED v4.1 Credits
Finishes

All steel components are protected with E-Coat Rust Proofing. The Maglin Powdercoat System provides a durable finish on all metal surfaces.

Installation

The 500 Series - 500 Bike Racks are delivered pre-assembled. It is available with a surface mount or direct burial installation option.

Standard Powdercoat Colors
Gloss Collection
Green
RAL 6037
Turquoise
RAL 5018
Reseda Green
RAL 6011
Pastel Blue
RAL 5024
Blue
RAL 5005
Violet Blue
RAL 5000
Red
RAL 3002
Orange
RAL 2009
Saffron Yellow
RAL 1017
Yellow
RAL 1018
White
RAL 9016
Black
Gunmetal
Titanium
Silver 14
Bronze 14
Fine Textured Collection* (matte finish)
Black
Gunmetal
Titanium
Silver 14
Bronze 14
Corten
Due to variations in screen resolution, color swatches may vary slightly from actual colors. Please contact Maglin for samples. *Fine Textured Paint available for an upcharge. Not available on metal table tops and stacking chairs, or for vinyl graphic application.
Download Color Chart

Dimensions

H.S. Steel Tube
Image Model Description Depth Height Height Above Grade Height Below Grade Length Weight

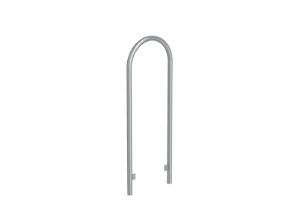

Metal Arching Object MBR-0500-00001 500 Series - 500 Bike Rack: H.S. Steel Tube, Direct Burial, 2 Bike Configuration 1.6” (4.1cm) 35” (88.9cm) 35” (88.9cm) 18” (45.7cm) 19.3” (48.9cm) 19.4lbs (8.8kg)

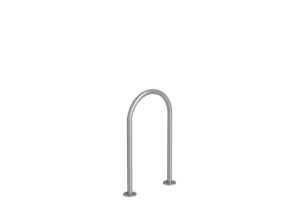

Bike Rack with Direct Burial MBR-0500-00003 500 Series - 500 Bike Rack: H.S. Steel Tube, Surface Mount, 2 Bike Configuration 4.5” (11.4cm) 35” (88.9cm) 35” (88.9cm) 22.1” (56.2cm) 13.3lbs (6.0kg)

Downloads
