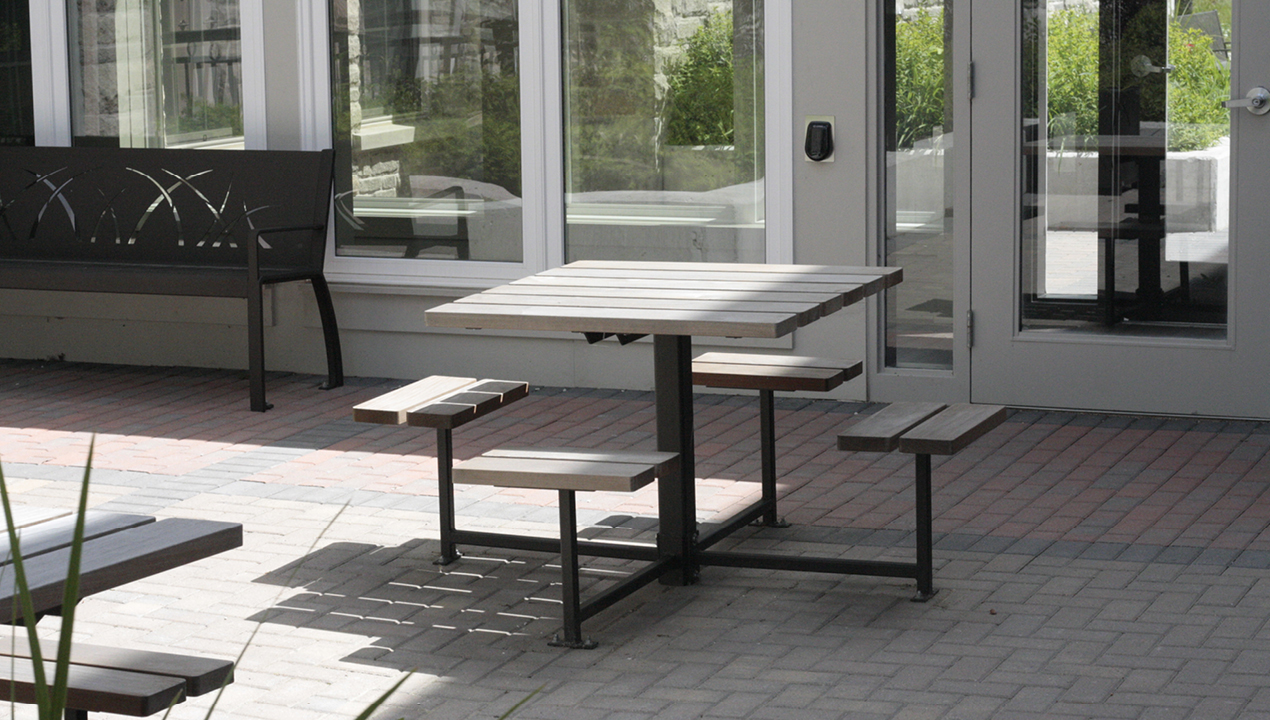

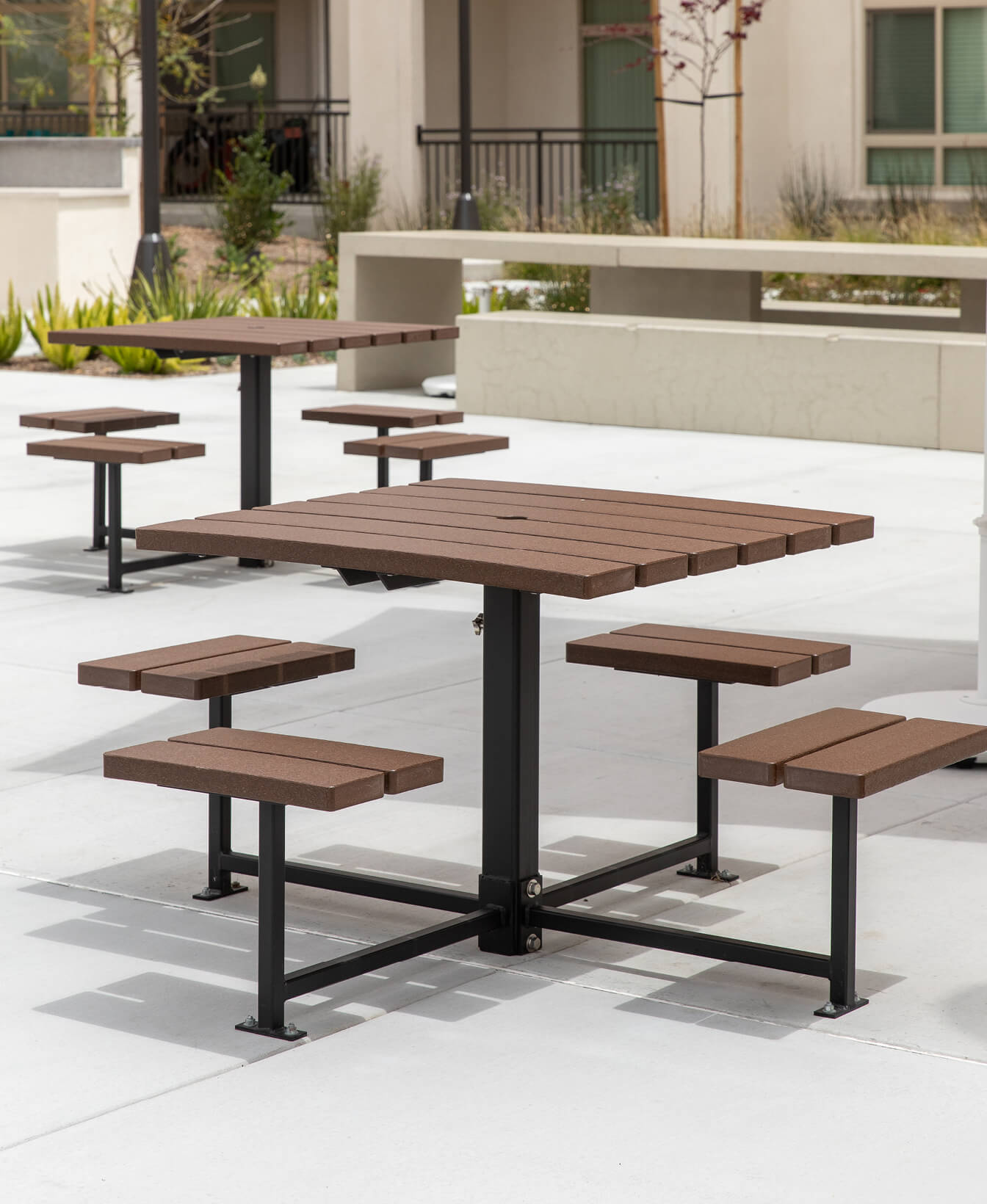

400 Cluster Seating on patio at apartment complex400 Cluster Seating on patio at apartment complex
Close-up of 400 Cluster Seating with wood grain texture high density polyethylene and umbrella holeClose-up of 400 Cluster Seating with wood grain texture high density polyethylene and umbrella hole

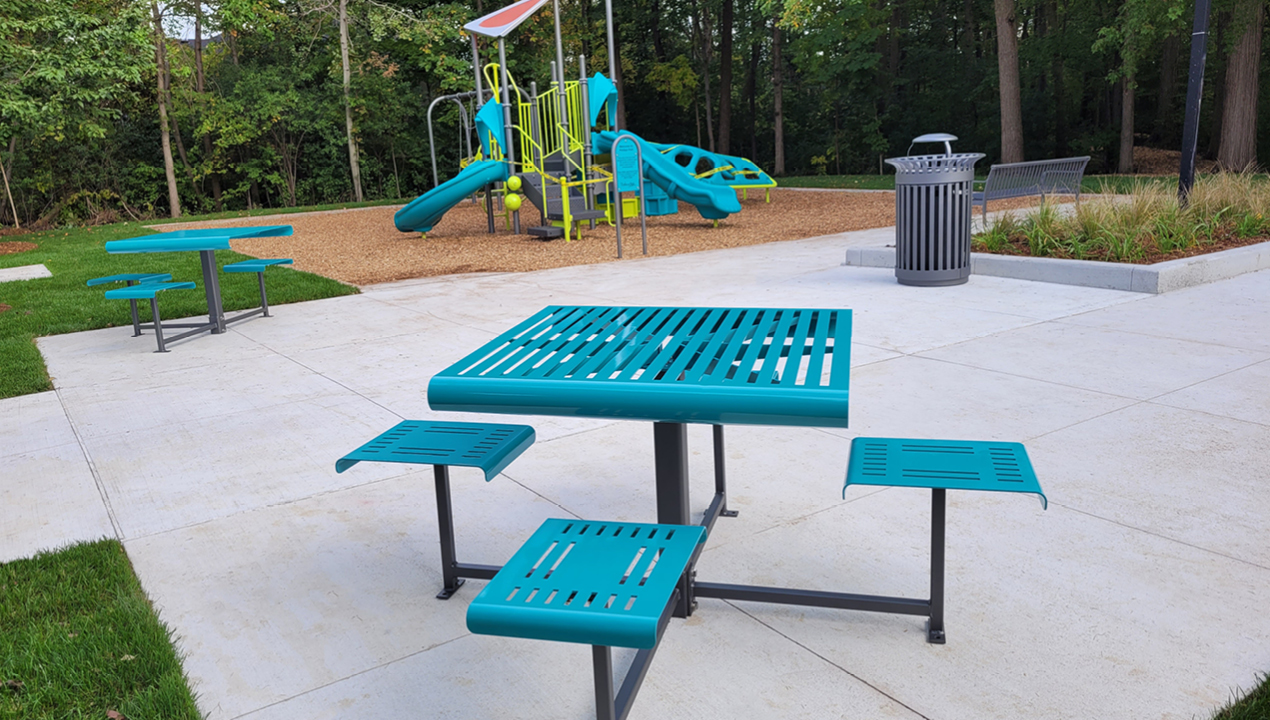

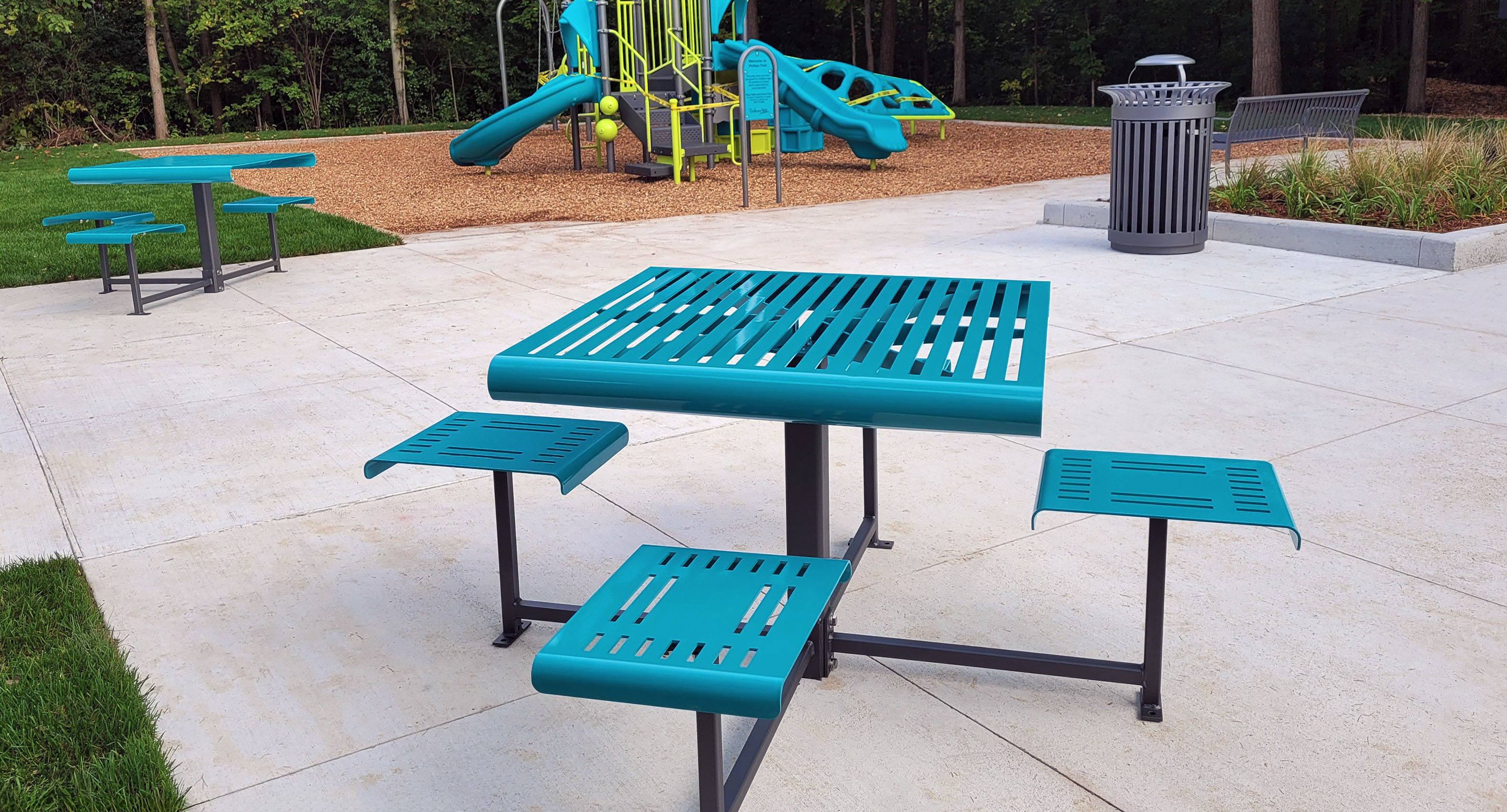

MTB-0400 Cluster Seating powdercoated turquoise at parkMTB-0400 Cluster Seating powdercoated turquoise at park

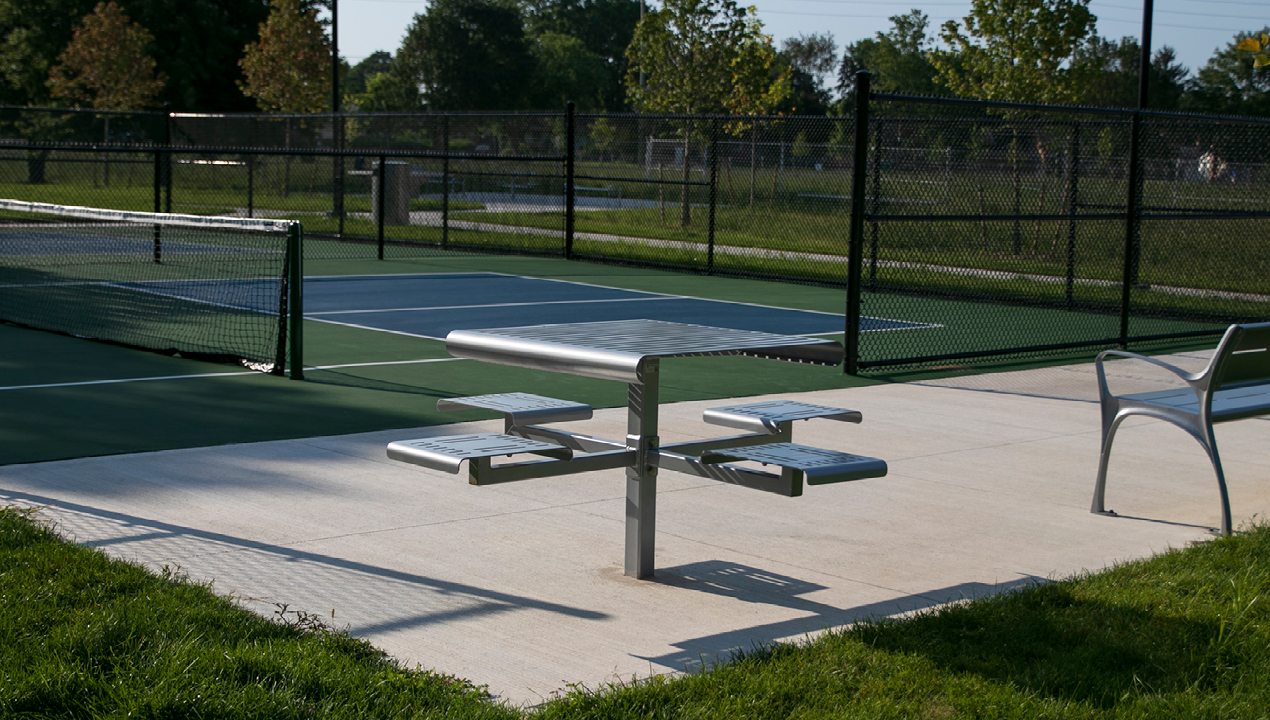

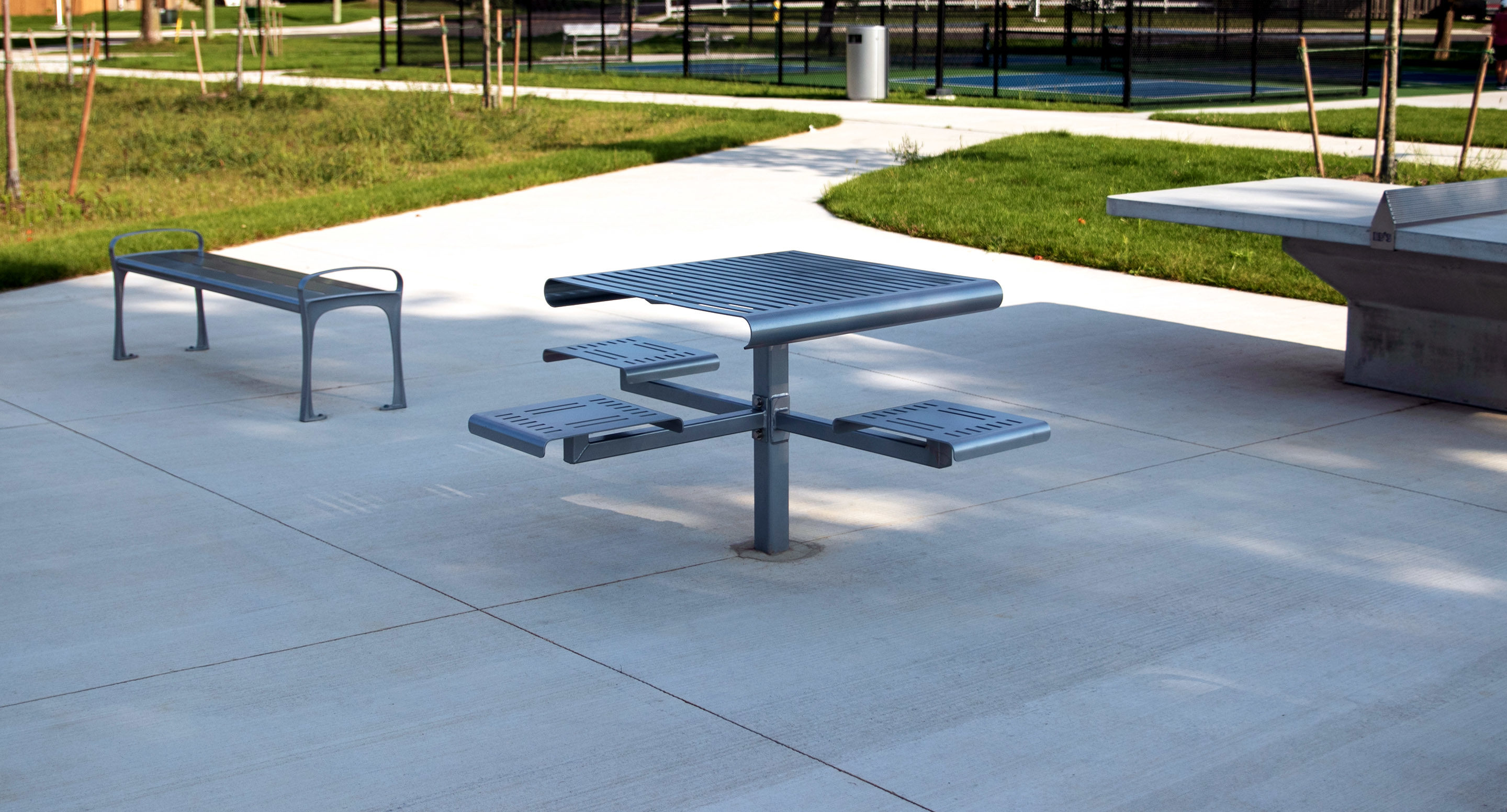

MTB-0400-00001: 400 Series Cluster Seating, Backless Metal Seats, Direct Burial, park settingMTB-0400-00001: 400 Series Cluster Seating, Backless Metal Seats, Direct Burial, park setting

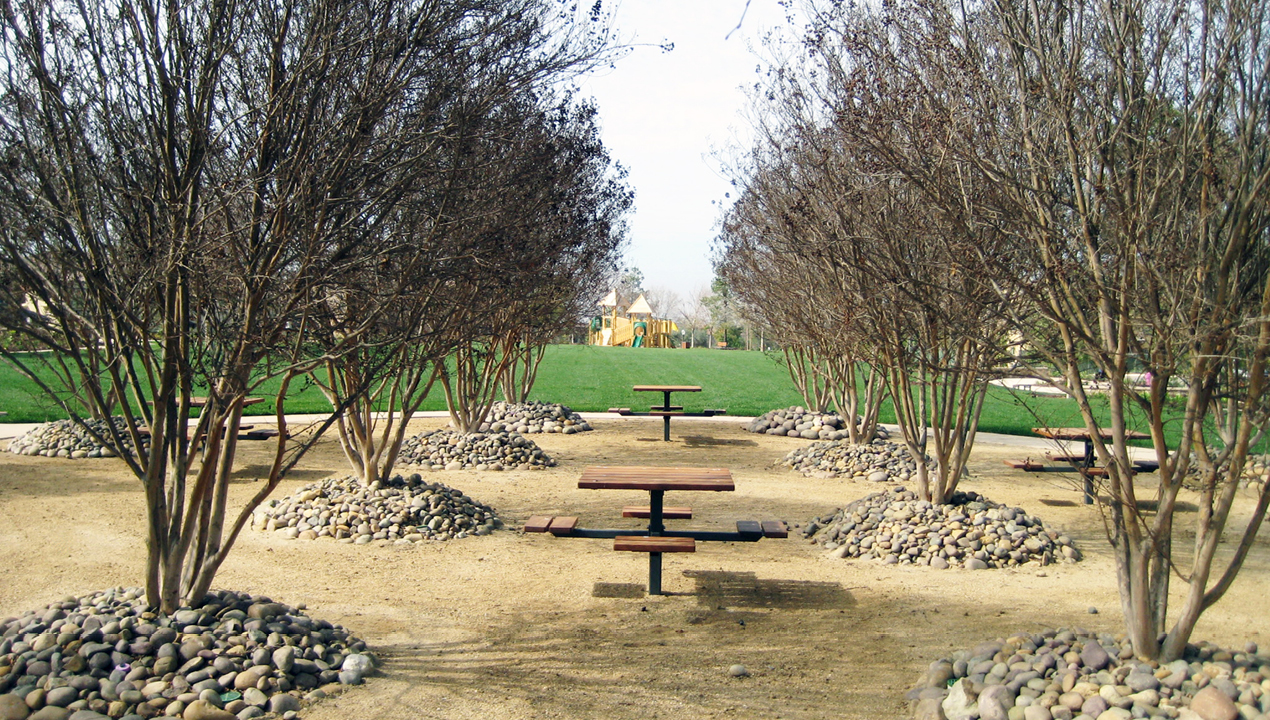

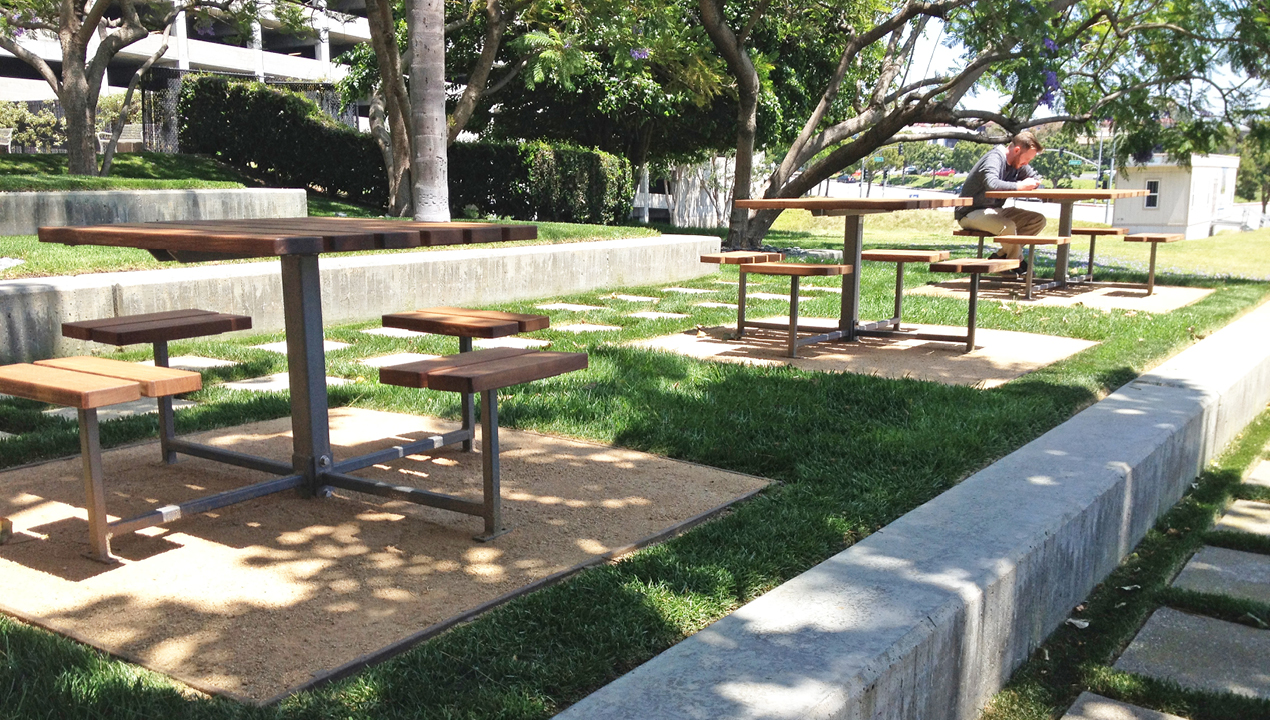

Three wooden tables with individual seatings outside on greens areaThree wooden tables with individual seatings outside on greens area

400 Series

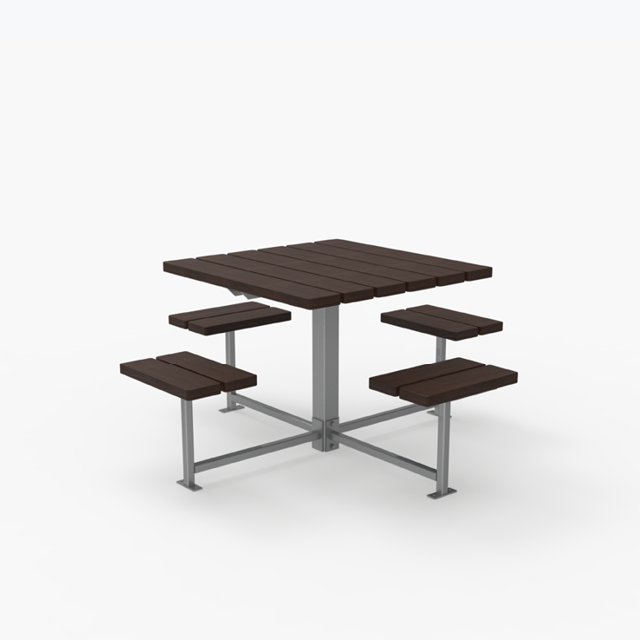

400 Cluster Seating

Bring people together in public parks and on campuses with the 400 Series – 400 Cluster Seating system. The frame is constructed using HS steel tube and flat bar, with table top and seats available in Ipe wood, metal or HDPE recycled plastic. This traditional table and seating system can be customized to your site’s needs with wheelchair accessibility, a gaming board or an umbrella hole.

Click Quick Quote to receive model number and pricing.

Quick Links

Product Info

Material Options
  • Metal
  • Wood Grain Texture High Density Polyethylene
  • Ipe Wood
  • Thermally Modified Ash Wood
Options
  • Direct Burial
  • Surface Mount
  • Wheelchair Accessible
  • Game Board
  • Umbrella Hole
Finishes

All steel components are protected with E-Coat Rust Proofing. The Maglin Powdercoat System provides a durable finish on all metal surfaces. Ipe wood slats are finished with penetrating sealers.

Installation

The 400 Series - 400 Cluster Seating surface mount tables are delivered pre-assembled. Tables with the direct burial option are shipped knocked down with minimal assembly required.

Standard Powdercoat Colors
Gloss Collection
Green
RAL 6037
Turquoise
RAL 5018
Reseda Green
RAL 6011
Pastel Blue
RAL 5024
Blue
RAL 5005
Violet Blue
RAL 5000
Red
RAL 3002
Orange
RAL 2009
Saffron Yellow
RAL 1017
Yellow
RAL 1018
White
RAL 9016
Black
Gunmetal
Titanium
Silver 14
Bronze 14
Fine Textured Collection* (matte finish)
Black
Gunmetal
Titanium
Silver 14
Bronze 14
Corten
Due to variations in screen resolution, color swatches may vary slightly from actual colors. Please contact Maglin for samples. *Fine Textured Paint available for an upcharge. Not available on metal table tops and stacking chairs, or for vinyl graphic application.
Download Color Chart

Dimensions

Thermally Modified Ash Wood
Image Model Description Height Height Below Grade Length Seat Height Weight Width

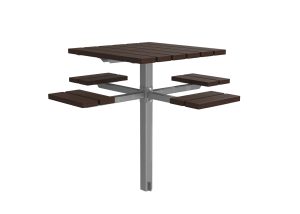

MTB-0400-00058: 400 Series Cluster Seating, Thermally Modified Ash Wood, Direct Burial MTB-0400-00058MTB-0400-00060 MTB-0400-00058 400 Series - 400 Cluster Seating: H.S. Steel Tube and Flat Bar Frame, Thermally Modified Ash Wood Table Top and Backless Seats (4), Direct BurialMTB-0400-00060 400 Series - 400 Cluster Seating: H.S. Steel Tube and Flat Bar Frame, Thermally Modified Ash Wood Table Top and Backless Seats (3), Direct Burial, Wheelchair Accessible 29.5” (74.9cm) 18” (45.7cm) 62.8” (159.4cm) 17.8” (45.1cm) 62.8” (159.4cm)
MTB-0400-00059MTB-0400-00061 MTB-0400-00059 400 Series - 400 Cluster Seating: H.S. Steel Tube and Flat Bar Frame, Thermally Modified Ash Wood Table Top and Backless Seats (4), Direct Burial, Game BoardMTB-0400-00061 400 Series - 400 Cluster Seating: H.S. Steel Tube and Flat Bar Frame, Thermally Modified Ash Wood Table Top and Backless Seats (3), Direct Burial, Wheelchair Accessible, Game Board 62.8” (159.4cm)

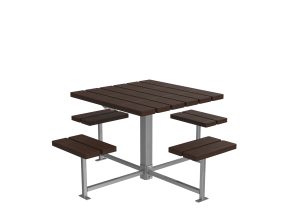

MTB-0400-00062: 400 Series Cluster Seating, Thermally Modified Ash Wood, Surface Mount MTB-0400-00062MTB-0400-00065 MTB-0400-00062 400 Series - 400 Cluster Seating: H.S. Steel Tube and Flat Bar Frame, Thermally Modified Ash Wood Table Top and Attached Backless Seats (4), Surface MountMTB-0400-00065 400 Series - 400 Cluster Seating: H.S. Steel Tube and Flat Bar Frame, Thermally Modified Ash Wood Table Top and Attached Backless Seats (3), Surface Mount, Wheelchair Accessible 29.5” (74.9cm) 62.3” (158.1cm) 17.5” (44.5cm) 62.3” (158.1cm)
MTB-0400-00063MTB-0400-00066 MTB-0400-00063 400 Series - 400 Cluster Seating: H.S. Steel Tube and Flat Bar Frame, Thermally Modified Ash Wood Table Top and Attached Backless Seats (4), Surface Mount, Game BoardMTB-0400-00066 400 Series - 400 Cluster Seating: H.S. Steel Tube and Flat Bar Frame, Thermally Modified Ash Wood Table Top and Attached Backless Seats (3), Surface Mount, Wheelchair Accessible, Game Board 62.3” (158.1cm)
MTB-0400-00064MTB-0400-00067 MTB-0400-00064 400 Series - 400 Cluster Seating: H.S. Steel Tube and Flat Bar Frame, Thermally Modified Ash Wood Table Top and Attached Backless Seats (4), Surface Mount, Umbrella HoleMTB-0400-00067 400 Series - 400 Cluster Seating: H.S. Steel Tube and Flat Bar Frame, Thermally Modified Ash Wood Table Top and Attached Backless Seats (3), Surface Mount, Wheelchair Accessible, Umbrella Mount 62.3” (158.1cm)
Metal
Image Model Description Height Height Below Grade Length Seat Height Weight Width

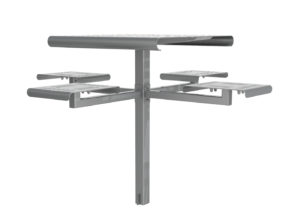

Metal Table with Attached individual seats MTB-0400-00001 400 Series - 400 Cluster Seating: H.S. Steel Tube and Flat Bar Frame, Metal Table Top and Attached Backless Seats (4), Direct Burial 29.5” (74.9cm) 18” (45.7cm) 70.5” (179.1cm) 17.8” (45.1cm) 217lbs (98.4kg) 70.5” (179.1cm)

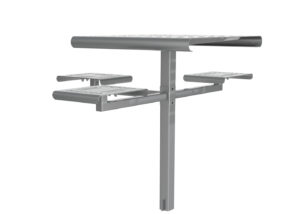

Metal Wheelchair Accessible Table with attached seating MTB-0400-00002 400 Series - 400 Cluster Seating: H.S. Steel Tube and Flat Bar Frame, Metal Table Top and Attached Backless Seats (3), Direct Burial, Wheelchair Accessible 29.5” (74.9cm) 18” (45.7cm) 70.5” (179.1cm) 17.8” (45.1cm) 190.2lbs (86.3kg)
MTB-0400-00003 400 Series - 400 Cluster Seating: H.S. Steel Tube and Flat Bar Frame, Metal Table Top and Attached Backless Seats (3), Direct Burial, Wheelchair Accessible, Game Board 29.5” (74.9cm) 18” (45.7cm) 70.5” (179.1cm) 17.8” (45.1cm) 190.2lbs (86.3kg)

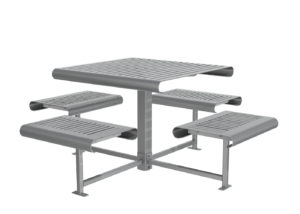

Metal Table with Attached Metal Seats MTB-0400-00011 400 Series - 400 Cluster Seating: H.S. Steel Tube and Flat Bar Frame, Metal Table Top and Attached Backless Seats (4), Surface Mount 29.5” (74.9cm) 70” (177.8cm) 17.7” (44.9cm) 278lbs (126.1kg) 70” (177.8cm)
MTB-0400-00012 400 Series - 400 Cluster Seating: H.S. Steel Tube and Flat Bar Frame, Metal Table Top and Attached Backless Seats (3), Surface Mount, Wheelchair Accessible 29.5” (74.9cm) 70” (177.8cm) 17.7” (44.9cm) 278lbs (126.1kg) 53” (134.6cm)
MTB-0400-00038 400 Series - 400 Cluster Seating: H.S. Steel Tube and Flat Bar Frame, Metal Table Top and Attached Backless Seats (4), Surface Mount, Umbrella Hole 29.5” (74.9cm) 70” (177.8cm) 17.7” (44.9cm) 278lbs (126.1kg) 70” (177.8cm)
MTB-0400-00039 400 Series - 400 Cluster Seating: H.S. Steel Tube and Flat Bar Frame, Metal Table Top and Attached Backless Seats (3), Surface Mount, Wheelchair Accessible, Umbrella Hole 29.5” (74.9cm) 70” (177.8cm) 17.7” (44.9cm) 278lbs (126.1kg) 53” (134.6cm)
Wood Grain Texture High Density Polyethylene
Image Model Description Height Height Below Grade Length Seat Height Weight Width

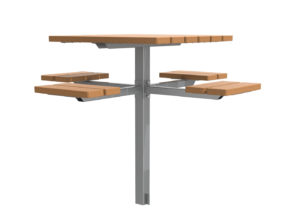

Light Brown Table with Attached Seating MTB-0400-00004 (Cedar) 400 Series - 400 Cluster Seating: H.S. Steel Tube and Flat Bar Frame, Wood Grain Texture High Density Polyethylene Table Top and Attached Backless Seats (4), Direct Burial 18” (45.7cm) 62.8” (159.4cm) 17.8” (45.1cm) 220.2lbs (99.9kg) 62.8” (159.4cm)

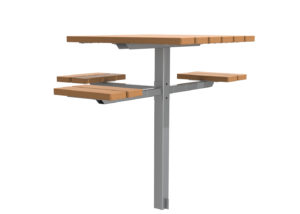

Light Brown Wheelchair Accessible Table with attached seating MTB-0400-00005 (Cedar)MTB-0400-00006 (Grey)MTB-0400-00041 (Brown) All Models400 Series - 400 Cluster Seating: H.S. Steel Tube and Flat Bar Frame, Wood Grain Texture High Density Polyethylene Table Top and Attached Backless Seats (3), Direct Burial, Wheelchair Accessible 18” (45.7cm) 62.8” (159.4cm) 17.8” (45.1cm) 196.3lbs (89.0kg)

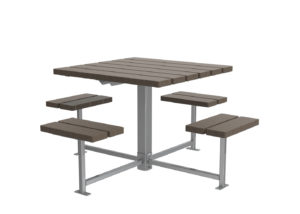

Dark Brown Table with Attached Individual Seating MTB-0400-00013 (Brown)MTB-0400-00017 (Cedar)MTB-0400-00020 (Grey) All Models400 Series - 400 Cluster Seating: H.S. Steel Tube and Flat Bar Frame, Wood Grain Texture High Density Polyethylene Table Top and Attached Backless Seats (4), Surface Mount 29.5” (74.9cm) 62.3” (158.1cm) 17.5” (44.5cm) 207.6lbs (94.2kg) 62.3” (158.1cm)
MTB-0400-00014 (Brown)MTB-0400-00021 (Grey)MTB-0400-00034 (Cedar) All Models400 Series - 400 Cluster Seating: H.S. Steel Tube and Flat Bar Frame, Wood Grain Texture High Density Polyethylene Table Top and Attached Backless Seats (4), Surface Mount, Umbrella Hole 29.5” (74.9cm) 62.3” (158.1cm) 17.5” (44.5cm) 207.6lbs (94.2kg) 62.3” (158.1cm)

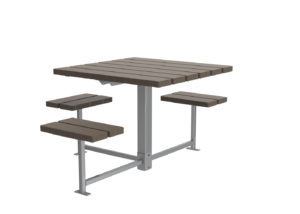

Dark Brown Wheelchair Accessible Table with attached seating MTB-0400-00015 (Brown)MTB-0400-00019 (Cedar)MTB-0400-00036 (Grey) All Models400 Series - 400 Cluster Seating: H.S. Steel Tube and Flat Bar Frame, Wood Grain Texture High Density Polyethylene Table Top and Attached Backless Seats (3), Surface Mount, Wheelchair Accessible 29.5” (74.9cm) 62.3” (158.1cm) 17.5” (44.5cm)
MTB-0400-00016 (Brown)MTB-0400-00035 (Grey) All Models400 Series - 400 Cluster Seating: H.S. Steel Tube and Flat Bar Frame, Wood Grain Texture High Density Polyethylene Table Top and Attached Backless Seats (3), Surface Mount, Wheelchair Accessible, Umbrella Hole 29.5” (74.9cm) 62.3” (158.1cm) 17.5” (44.5cm)
MTB-0400-00018 (Cedar) 400 Series - 400 Cluster Seating: H.S. Steel Tube and Flat Bar Frame, Wood Grain Texture High Density Polyethylene Table Top and Attached Backless Seats (3), Surface Mount, Wheelchair Accessible, Game Board 29.5” (74.9cm) 62.3” (158.1cm) 17.5” (44.5cm)
Grey Table with attached individual seats MTB-0400-00030 (Grey)MTB-0400-00040 (Brown) All Models400 Series - 400 Cluster Seating: H.S. Steel Tube and Flat Bar Frame, Wood Grain Texture High Density Polyethylene Table Top and Attached Backless Seats (4), Direct Burial 29.5” (74.9cm) 18” (45.7cm) 62.8” (159.4cm) 17.8” (45.1cm) 220.2lbs (99.9kg) 62.8” (159.4cm)
MTB-0400-00033 (Cedar) 400 Series - 400 Cluster Seating: H.S. Steel Tube and Flat Bar Frame, Wood Grain Texture High Density Polyethylene Table Top and Attached Backless Seats (4), Surface Mount, Game Board 29.5” (74.9cm) 62.3” (158.1cm) 17.5” (44.5cm) 207.6lbs (94.2kg) 62.3” (158.1cm)
Ipe Wood
Image Model Description Height Height Below Grade Length Seat Height Weight Width

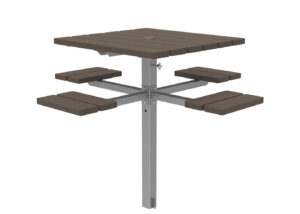

Brown Table with Attached Individual Seats MTB-0400-00007 400 Series - 400 Cluster Seating: H.S. Steel Tube and Flat Bar Frame, Ipe Wood Table Top and Attached Backless Seats (4), Direct Burial 29.5” (74.9cm) 18” (45.7cm) 62.8” (159.4cm) 17.8” (45.1cm) 244lbs (110.7kg) 62.8” (159.4cm)
MTB-0400-00008 400 Series - 400 Cluster Seating: H.S. Steel Tube and Flat Bar Frame, Ipe Wood Table Top and Attached Backless Seats (4), Direct Burial, Game Board 29.5” (74.9cm) 18” (45.7cm) 62.8” (159.4cm) 17.8” (45.1cm) 244lbs (110.7kg) 62.8” (159.4cm)

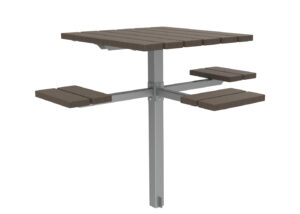

Brown Wheelchair Accessible Table with attached seating MTB-0400-00009 400 Series - 400 Cluster Seating: H.S. Steel Tube and Flat Bar Frame, Ipe Wood Table Top and Attached Backless Seats (3), Direct Burial, Wheelchair Accessible 29.5” (74.9cm) 18” (45.7cm) 62.8” (159.4cm) 17.8” (45.1cm) 216.9lbs (98.4kg) 49.4” (125.4cm)
MTB-0400-00010 400 Series - 400 Cluster Seating: H.S. Steel Tube and Flat Bar Frame, Ipe Wood Table Top and Attached Backless Seats (3), Direct Burial, Wheelchair Accessible, Game Board 29.5” (74.9cm) 18” (45.7cm) 62.8” (159.4cm) 17.8” (45.1cm) 216.9lbs (98.4kg) 49.4” (125.4cm)
Auburn Coloured Table with Individual Seating MTB-0400-00024 400 Series - 400 Cluster Seating: H.S. Steel Tube and Flat Bar Frame, Ipe Wood Table Top and Attached Backless Seats (4), Surface Mount 29.5” (74.9cm) 62.3” (158.1cm) 17.5” (44.5cm) 231.3lbs (104.9kg) 62.3” (158.1cm)
MTB-0400-00025 400 Series - 400 Cluster Seating: H.S. Steel Tube and Flat Bar Frame, Ipe Wood Table Top and Attached Backless Seats (4), Surface Mount, Game Board 29.5” (74.9cm) 62.3” (158.1cm) 17.5” (44.5cm) 231.3lbs (104.9kg) 62.3” (158.1cm)
MTB-0400-00026 400 Series - 400 Cluster Seating: H.S. Steel Tube and Flat Bar Frame, Ipe Wood Table Top and Attached Backless Seats (4), Surface Mount, Umbrella Hole 29.5” (74.9cm) 62.3” (158.1cm) 17.5” (44.5cm) 231.3lbs (104.9kg) 62.3” (158.1cm)
Auburn Wheelchair Accessible Table with attached seating MTB-0400-00027 400 Series - 400 Cluster Seating: H.S. Steel Tube and Flat Bar Frame, Ipe Wood Table Top and Attached Backless Seats (3), Surface Mount, Wheelchair Accessible 29.5” (74.9cm) 62.3” (158.1cm) 17.5” (44.5cm) 203.9lbs (92.5kg) 49.1” (124.8cm)
MTB-0400-00028 400 Series - 400 Cluster Seating: H.S. Steel Tube and Flat Bar Frame, Ipe Wood Table Top and Attached Backless Seats (3), Surface Mount, Wheelchair Accessible, Game Board 29.5” (74.9cm) 62.3” (158.1cm) 17.5” (44.5cm) 203.9lbs (92.5kg) 49.1” (124.8cm)
