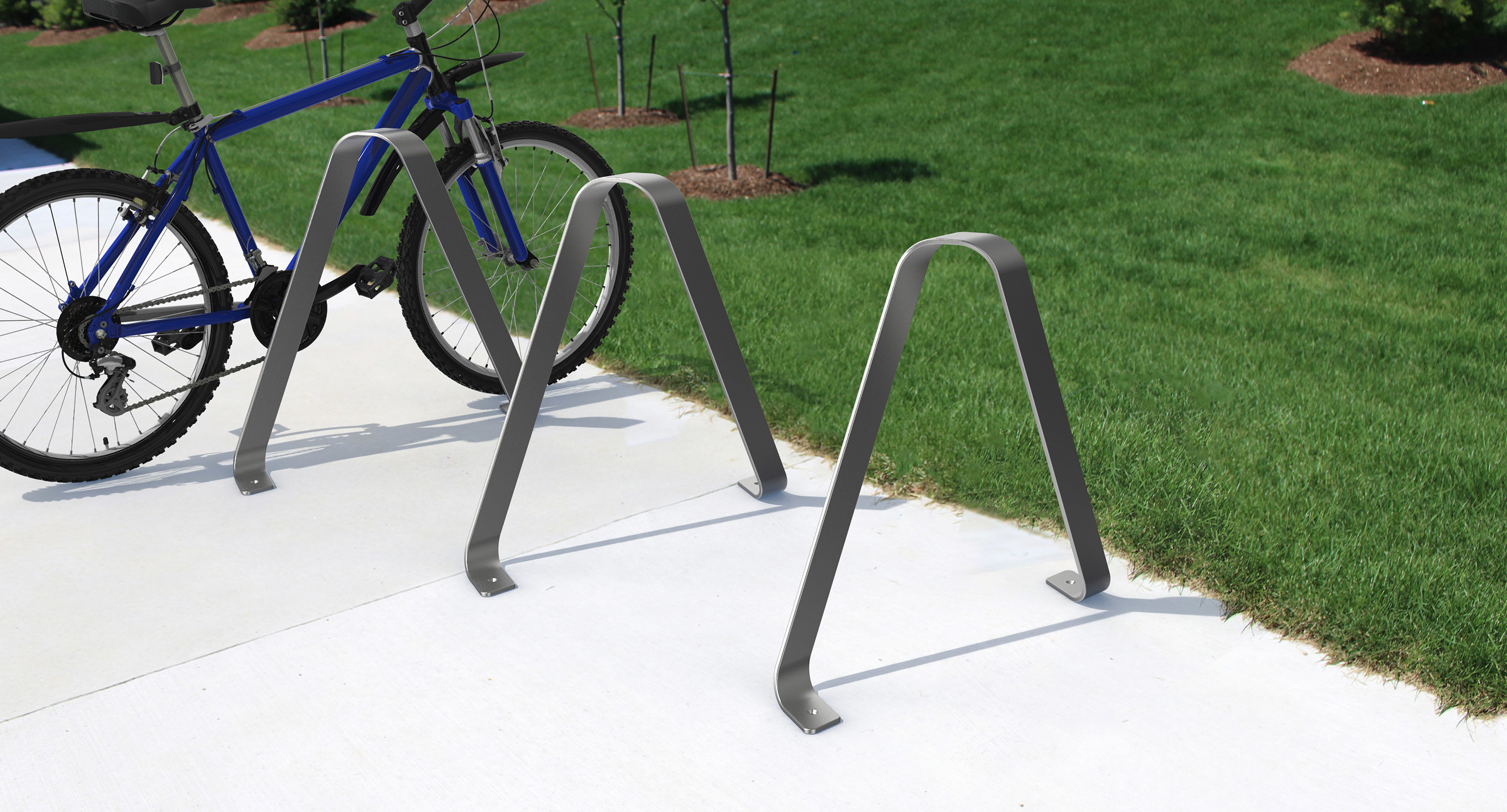

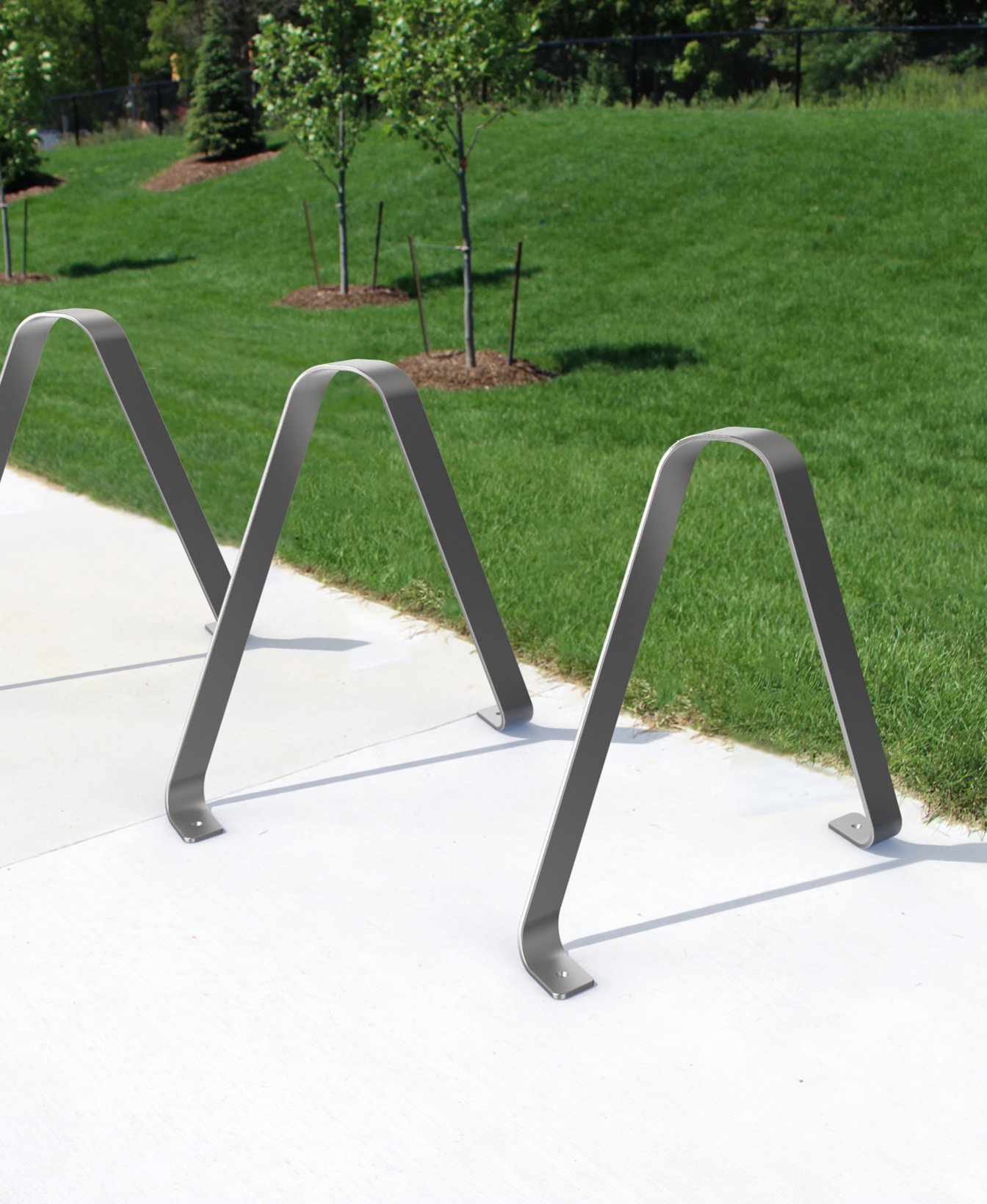

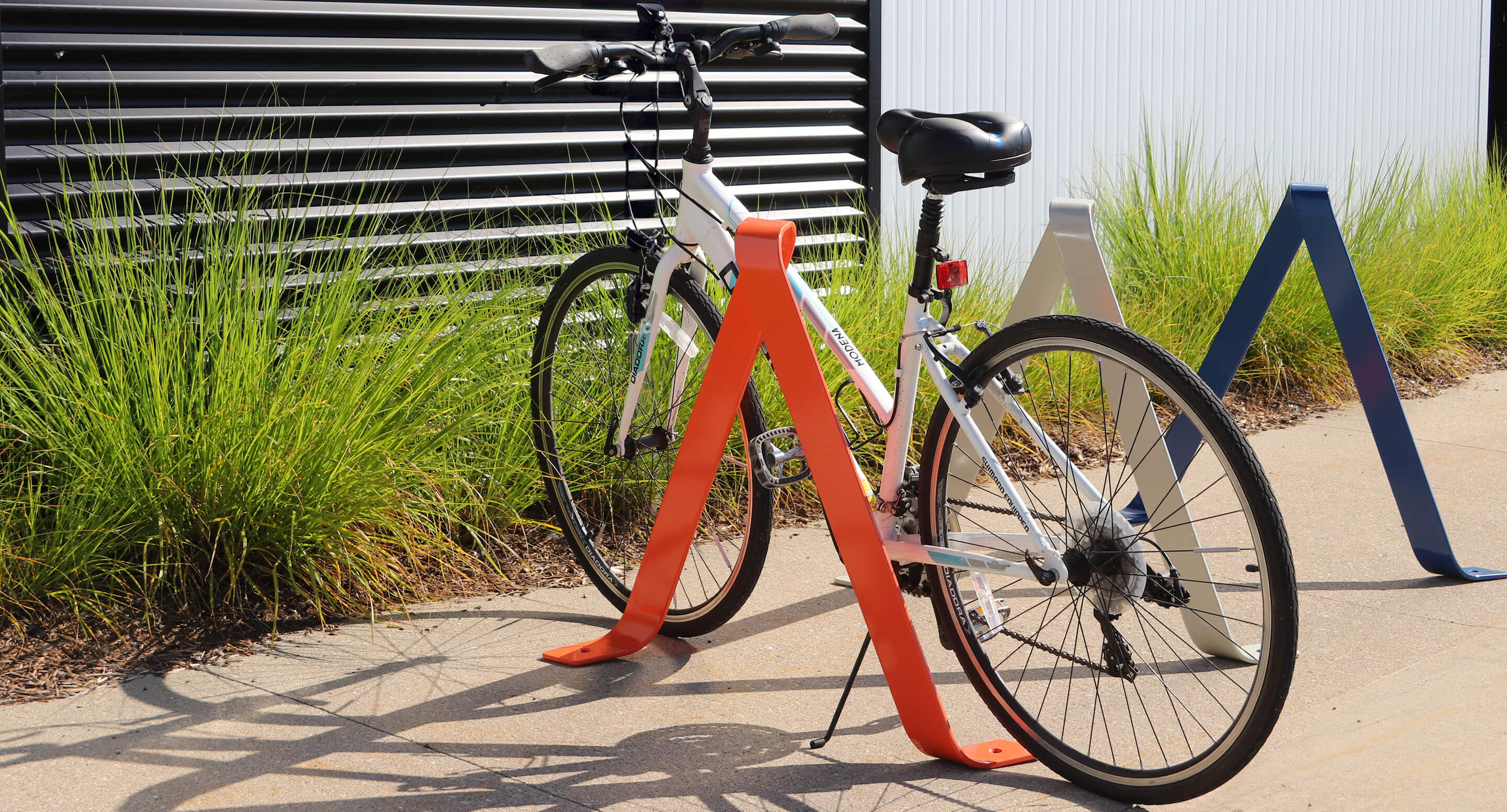

3100 Series - Stainless Steel Bike Racks with Bicycle in park3100 Series - Stainless Steel Bike Racks with Bicycle in park

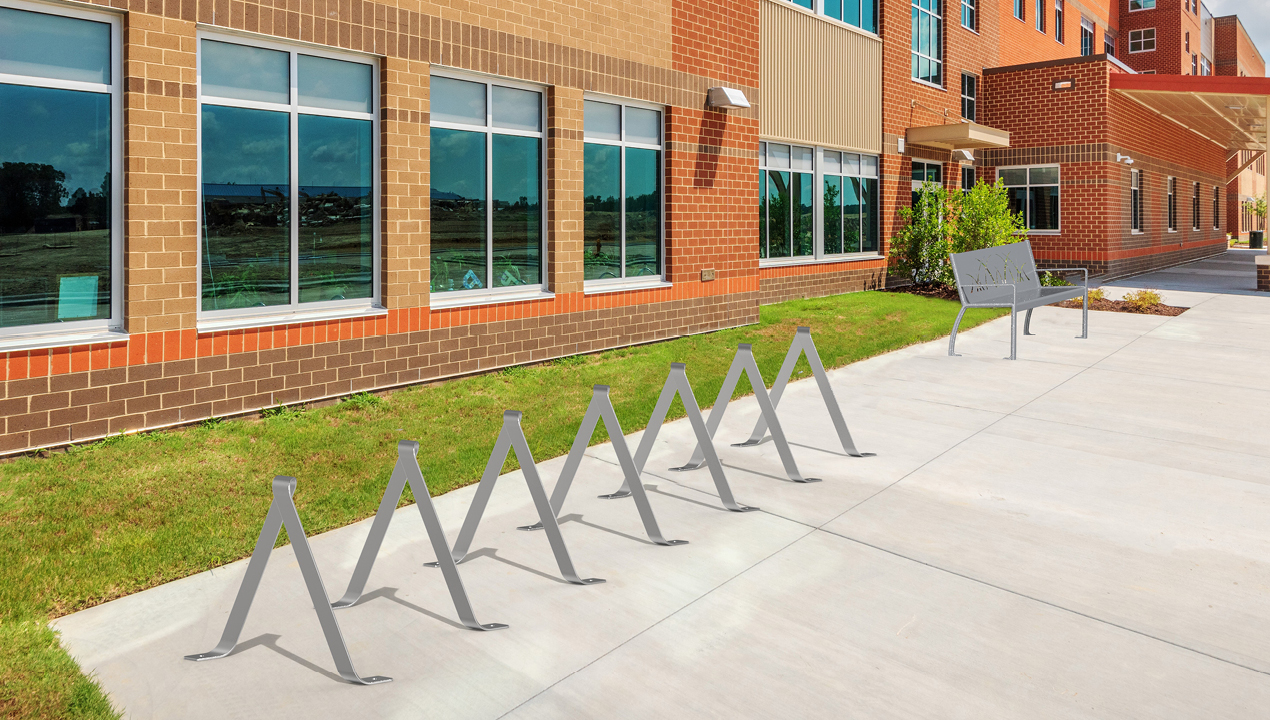

3100 Series - Stainless Steel Bike Racks in front of school3100 Series - Stainless Steel Bike Racks in front of school

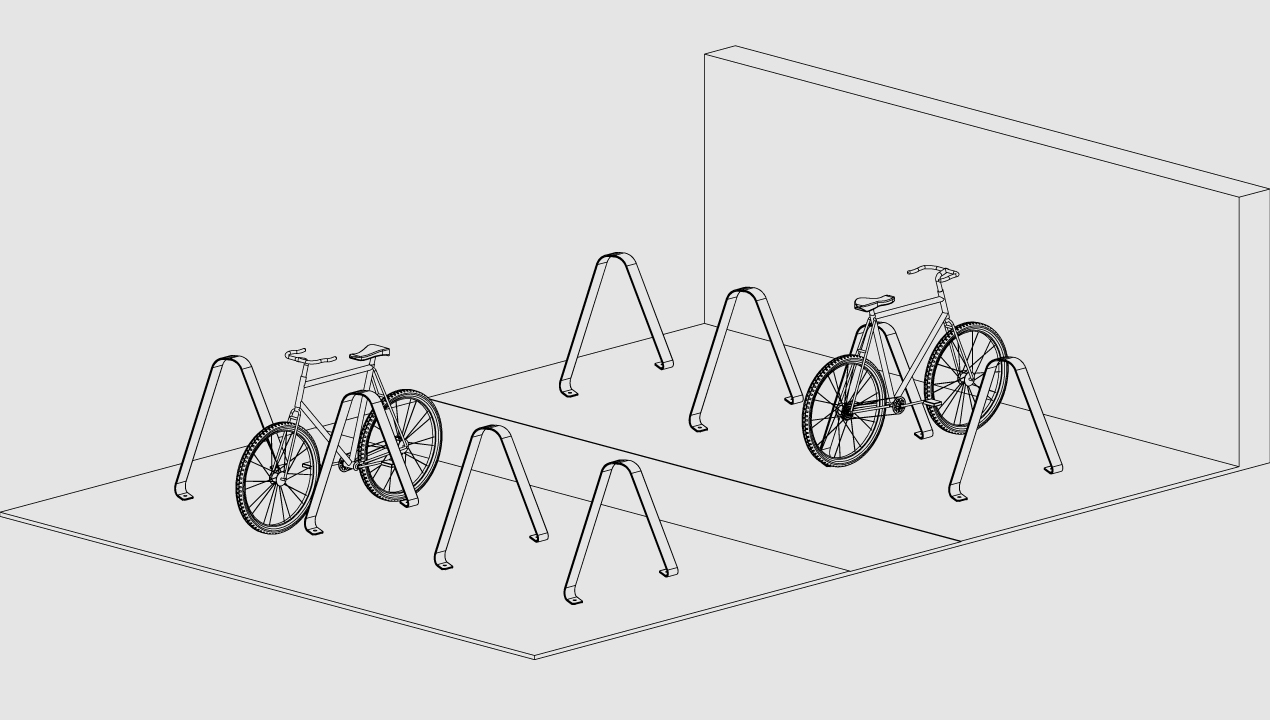

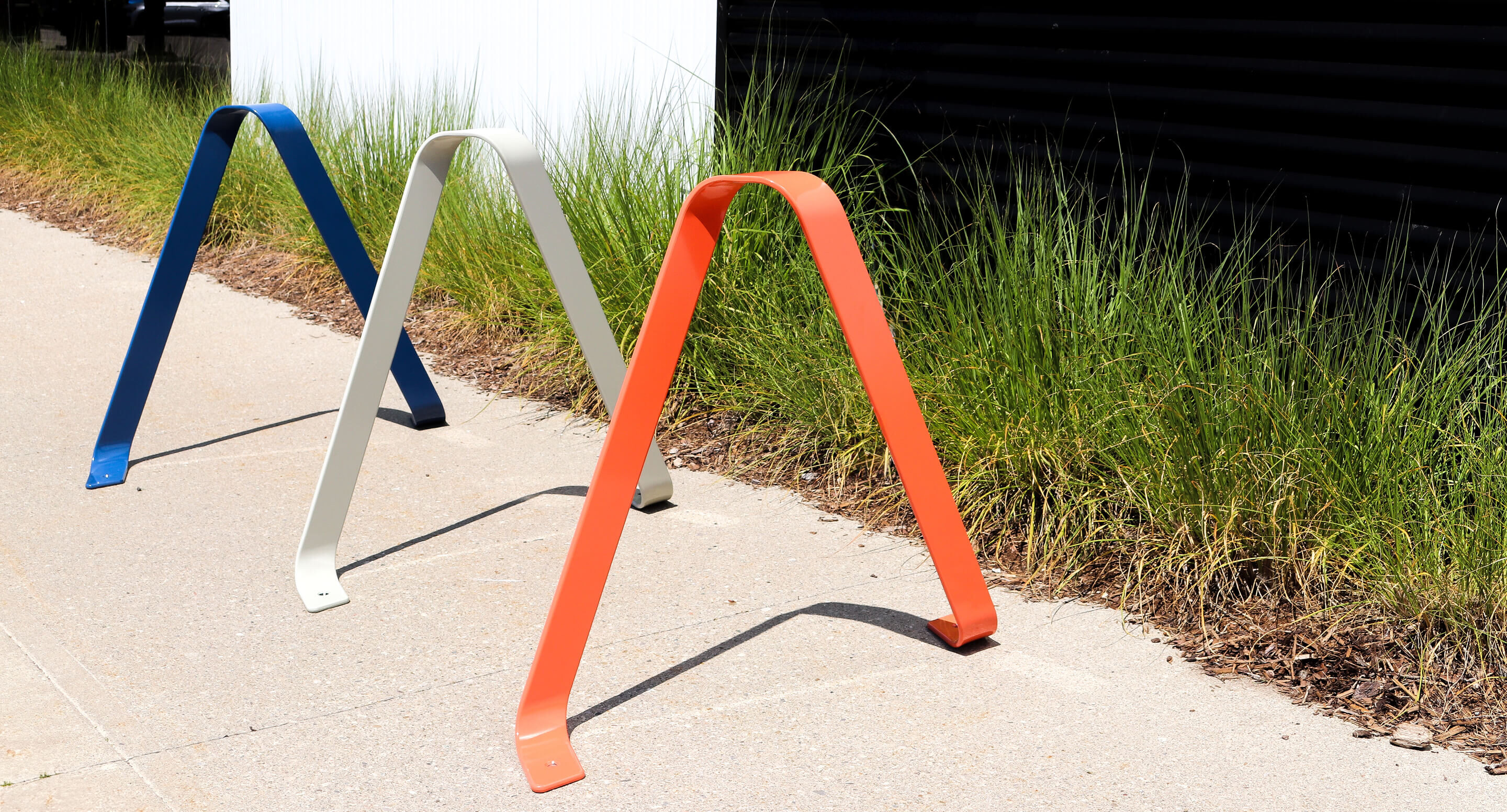

3100 Series - Bike Rack placement with bicycles3100 Series - Bike Rack placement with bicycles

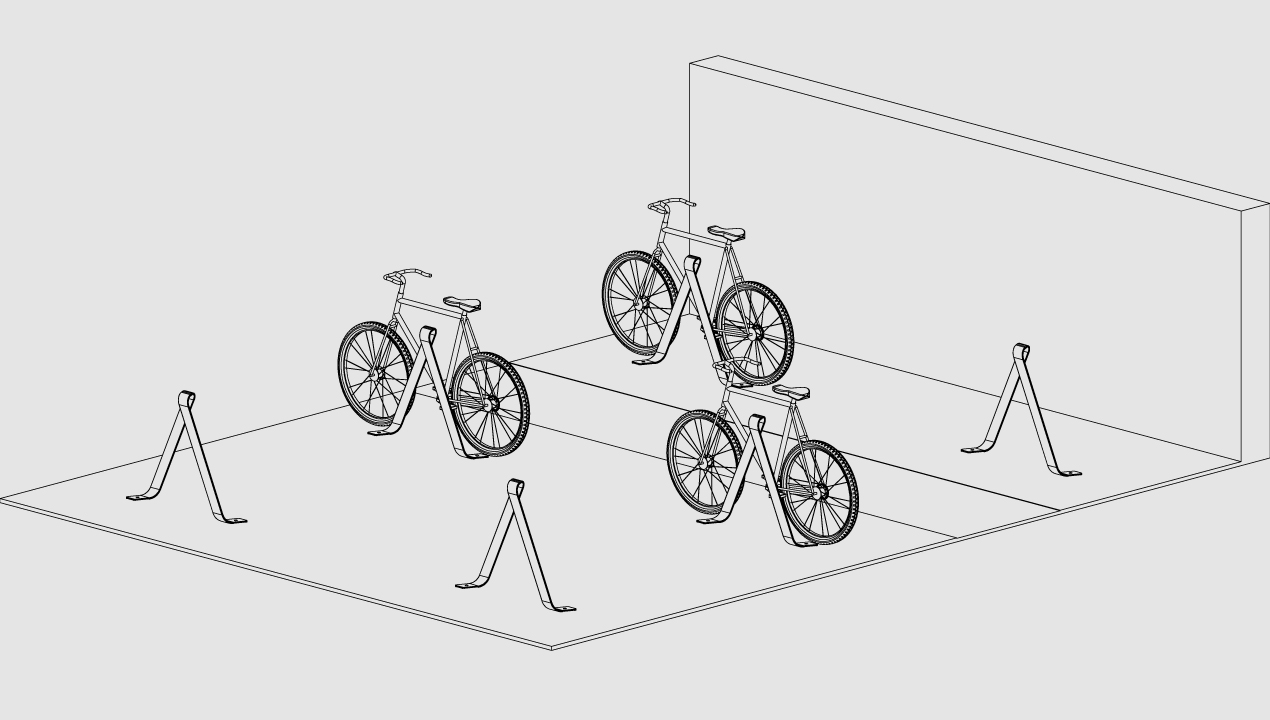

3100 Series - Bike Rack placement with bicycles3100 Series - Bike Rack placement with bicycles

3100 Series

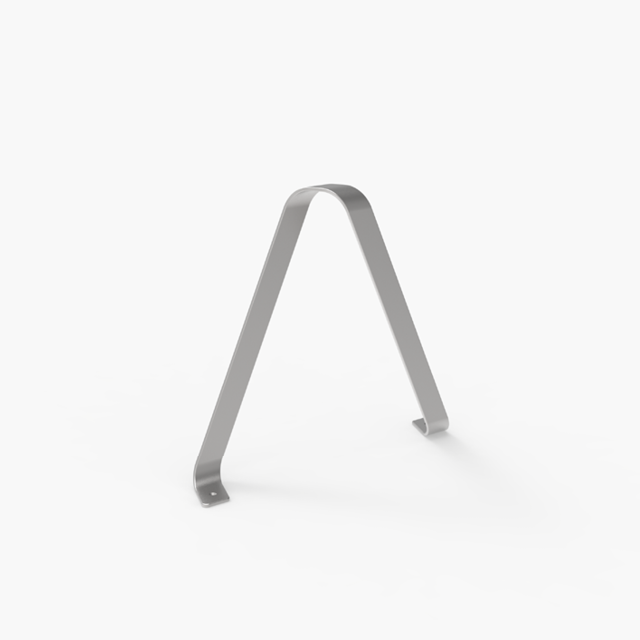

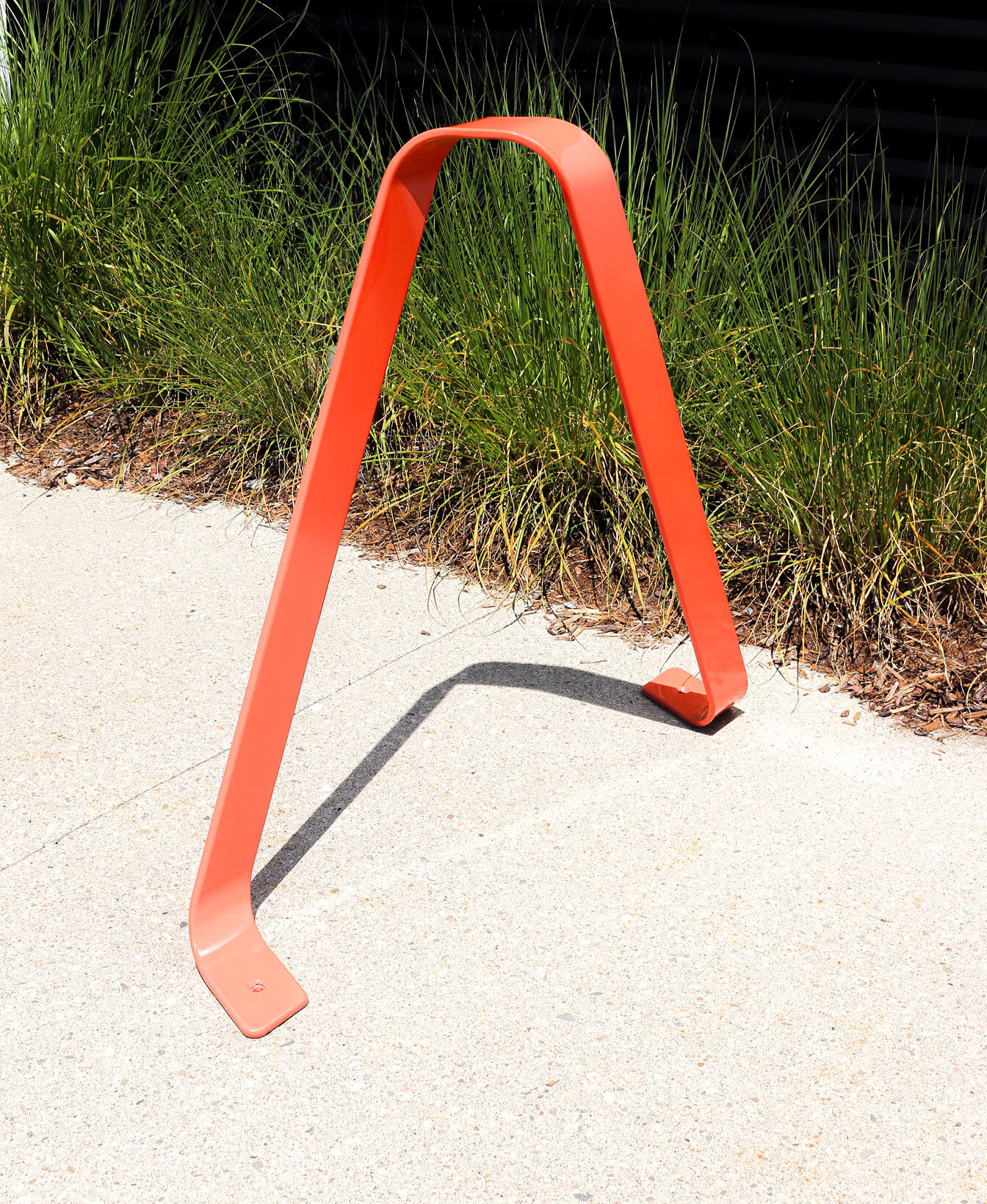

3100 Bike Rack

The 3100 Series Bike rack is available in a singular material and finish (304 stainless steel with a bead blast surface) to maximize style and minimize maintenance. Its angular appearance is enhanced by a thick SS Profile and bullnose edge, which also increases resistance to damage and provides a smoother point of contact between bike and rack.

Counter sunk anchors, anti-theft installation hardware and 2x locking points means maximum security for users.

Click Quick Quote to receive model number and pricing.

Quick Links

Product Info

Material Options
  • Stainless Steel
Options
  • Surface Mount
Sustainability Facts
  • Carbon footprint (GWP): 117 kg CO2-Eq
  • Material Recyclability: 100%
  • LEED v4.1 Credits
Finishes

The bike rack is 304 stainless steel with a bead blast finish.

Installation

The 3100 Series Bike Rack is delivered pre-assembled. The bike rack comes standard as a surface mount using 2 holes (1/2") for securing to base.

Dimensions

Stainless Steel
Image Model Description Depth Height Height Above Grade Length Weight

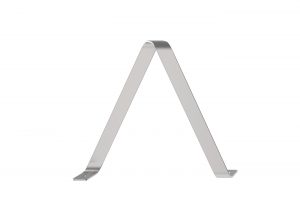

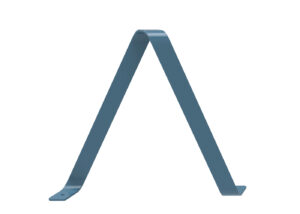

3100 Series - Stainless Steel Bike Rack MBR-3100-00002 3100 Series - 3100 Bike Rack: Stainless Steel, Surface Mount, 2 Bike Configuration 6” (15.2cm) 30” (76.2cm) 30” (76.2cm) 36.6” (93.0cm) 25.8lbs (11.7kg)
