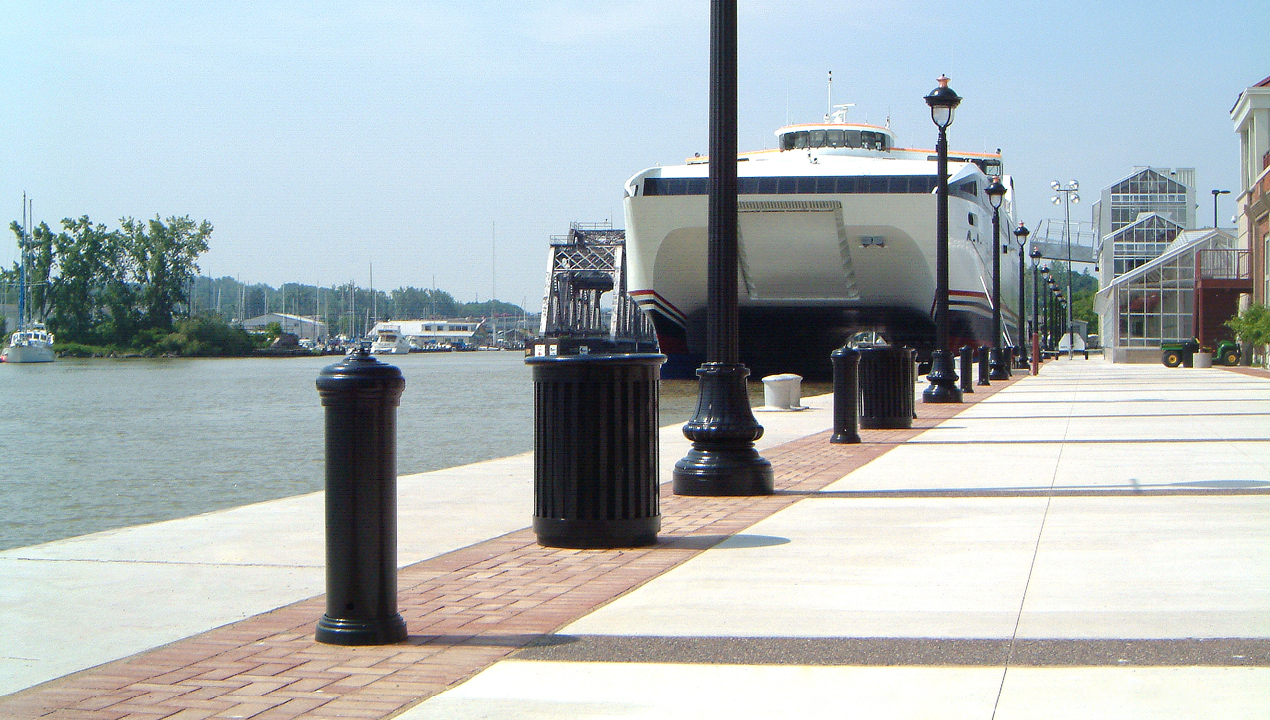

Bollards and Trashcans along waterBollards and Trashcans along water

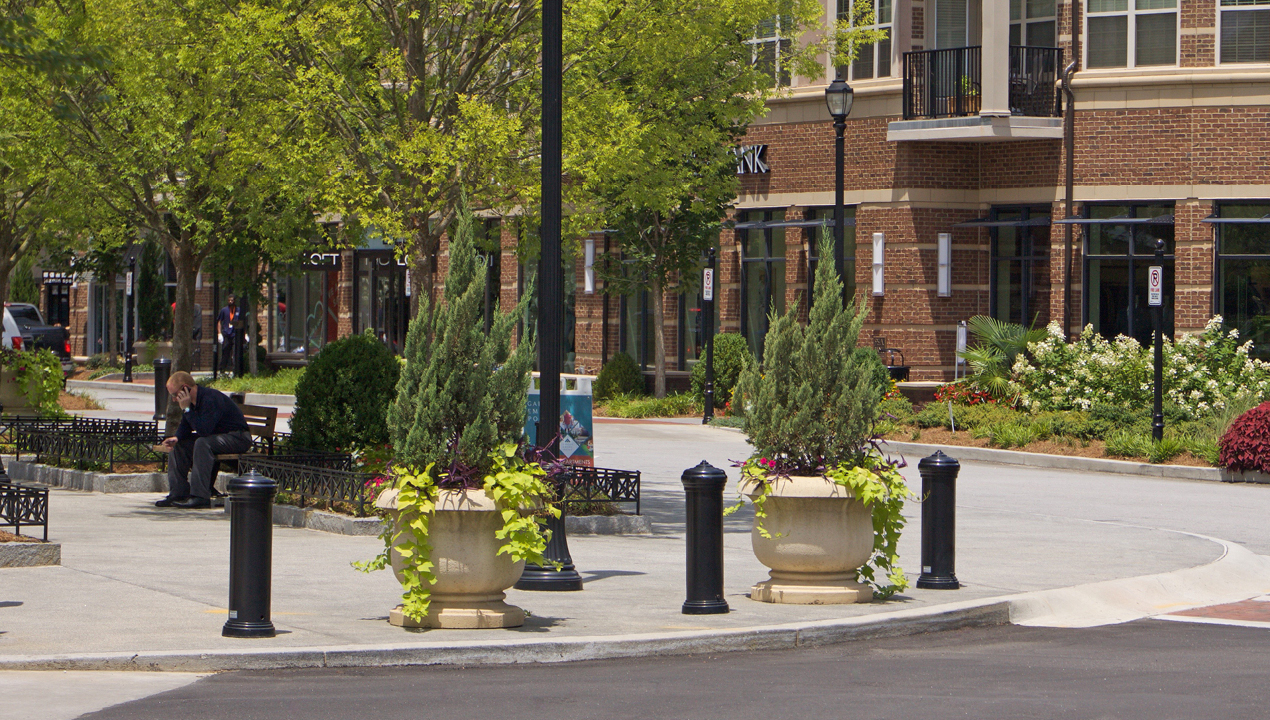

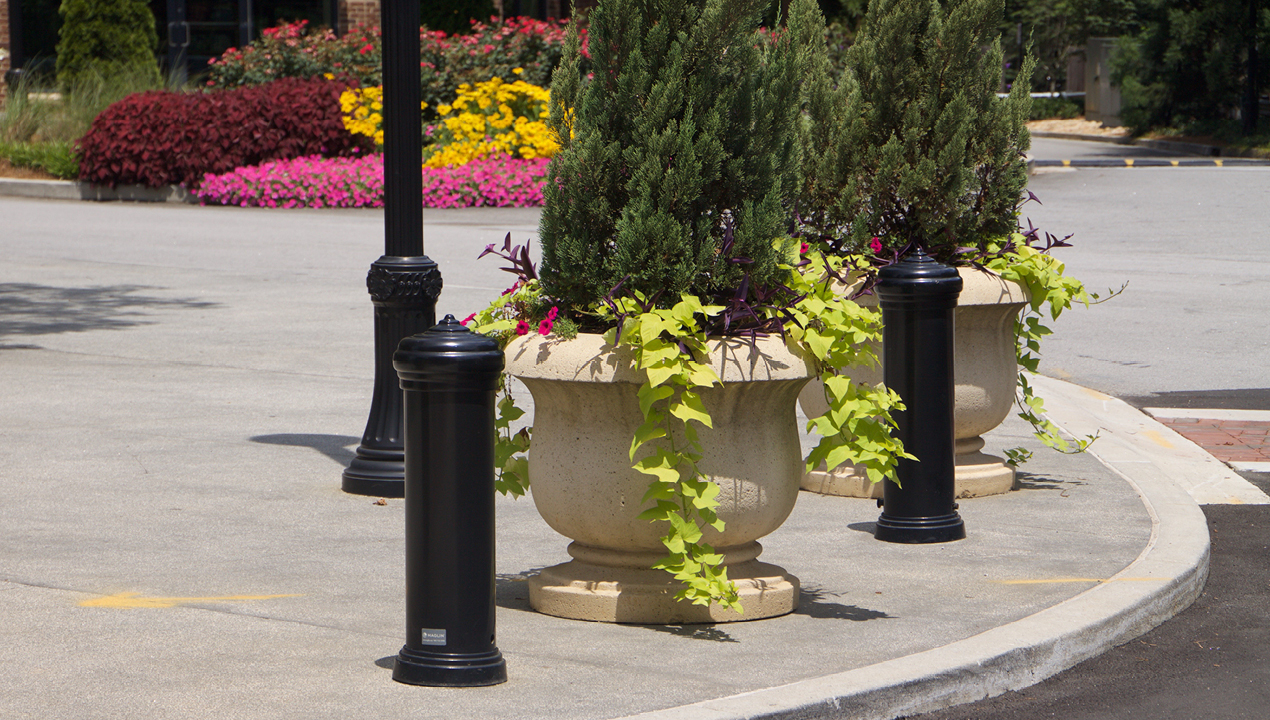

Bollards near plantersBollards near planters

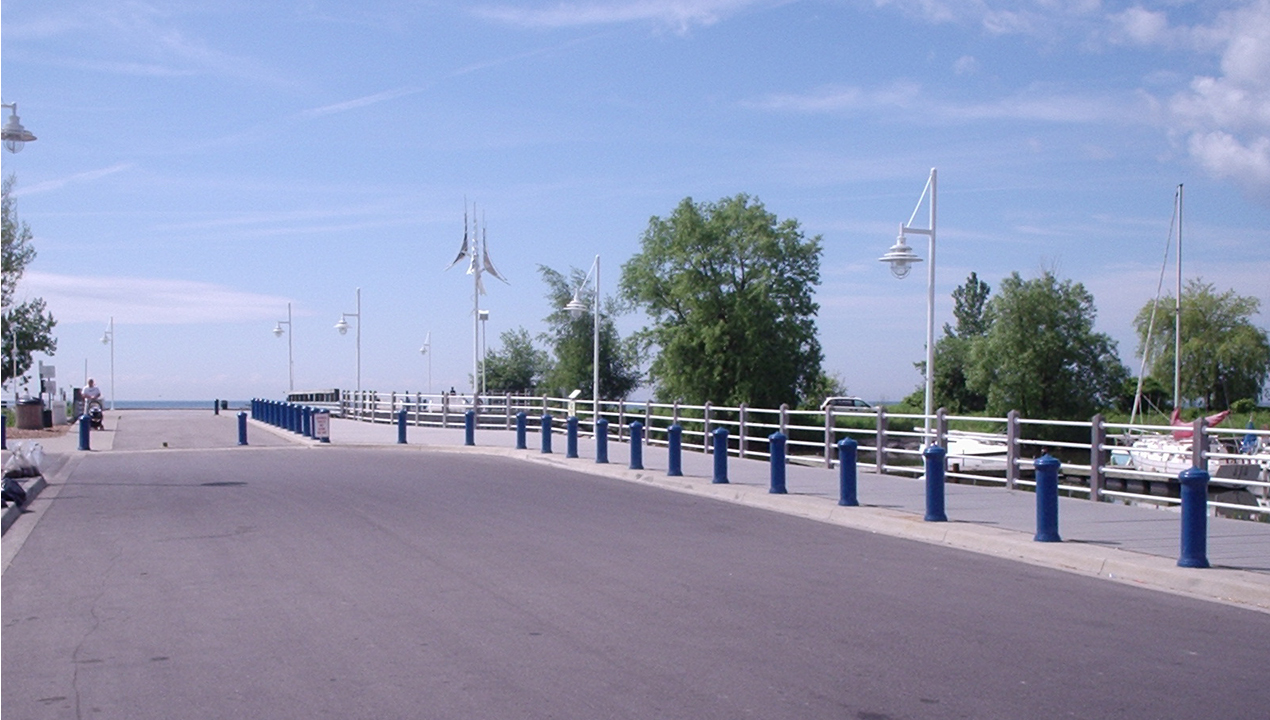

Blue sky and open road with blue bollardsBlue sky and open road with blue bollards

200 Series

200 Bollards

Substantial site protection on a large scale. The 200 Series – 200 Bollard offers heavy-duty performance; constructed of 8-5/8" (21.9cm) diameter HS steel tube with a 1/4" (0.6cm) or optional 1/2" (1.3cm) wall with a decorative top and base in cast aluminum that will complement other traditionally-inspired site furniture. Four base type options are available for easy installation and allowing for fixed or removable configurations. Optional forged steel eyebolts (for attaching chain) are available, and swing gates can be added to bollards using Type-4 bases.

Click Quick Quote to receive model number and pricing.

Quick Links

Product Info

Material Options
  • H.S. Steel Tube, Cast Aluminum Top and Base
Options
  • Direct Burial
  • Removable
  • Eyebolts
  • Reflective Tape
  • Swing Gate (Base Type 4 Only)
Finishes

All steel components are protected with E-Coat Rust Proofing. The Maglin Powdercoat System provides a durable finish on all metal surfaces.

Installation

Base Type 1 - Bollard is supplied with additional 18" of tubing to be set in concrete. Bollard is permanently fixed in place.
Base Type 2 - Threaded rod is set into concrete. Bollard is screwed onto rod and tightened. For use in existing concrete or where bollard may need to be removed.
Base Type 3 - Threaded anchor is set into concrete and the bollard is screwed into the anchor. To prevent debris from accumulating in the opening while the bollard is removed, a plug is supplied. The plug also protects the anchor threads. For use when bollard is removed for long periods.
Base Type 4 - Base tubing sleeve is set into concrete. Bollard slides over sleeve and is fastened together by a pin through the outer and inner tubes. A padlock can be used to lock the bollard in position. This bollard type is easy to remove frequently.

Standard Powdercoat Colors
Gloss Collection
Green
RAL 6037
Turquoise
RAL 5018
Reseda Green
RAL 6011
Pastel Blue
RAL 5024
Blue
RAL 5005
Violet Blue
RAL 5000
Red
RAL 3002
Orange
RAL 2009
Saffron Yellow
RAL 1017
Yellow
RAL 1018
White
RAL 9016
Black
Gunmetal
Titanium
Silver 14
Bronze 14
Fine Textured Collection* (matte finish)
Black
Gunmetal
Titanium
Silver 14
Bronze 14
Corten
Due to variations in screen resolution, color swatches may vary slightly from actual colors. Please contact Maglin for samples. *Fine Textured Paint available for an upcharge. Not available on metal table tops and stacking chairs, or for vinyl graphic application.
Download Color Chart

Dimensions

H.S. Steel Tube, Cast Aluminum Top and Base
Image Model Description Diameter Height Wall Thickness Weight
200 Series Bollard, Base Type 1 - Direct Burial MBO-0200-00001 200 Series - 200 Bollard: H.S. Steel Tube, Cast Aluminum Top and Base, Base Type 1 - Direct Burial 8.6” (21.9cm) 35” (88.9cm) 0.3” (0.6cm) 95lbs (43.1kg)
MBO-0200-00002: 200 Series Bollard, Base Type 1, Eyebolts MBO-0200-00002 200 Series - 200 Bollard: H.S. Steel Tube, Cast Aluminum Top and Base, Base Type 1 - Direct Burial, Eyebolts 8.6” (21.9cm) 35” (88.9cm) 0.3” (0.6cm)
200 Series Bollard, Base Type 2 - Removable MBO-0200-00005 200 Series - 200 Bollard: H.S. Steel Tube, Cast Aluminum Top and Base, Base Type 2 - Removable 8.6” (21.9cm) 35” (88.9cm) 0.3” (0.6cm) 70lbs (31.8kg)
MBO-0200-00006: 200 Series Bollard, Base Type 2, Eyebolts MBO-0200-00006 200 Series - 200 Bollard: H.S. Steel Tube, Cast Aluminum Top and Base, Base Type 2 - Removable, Eyebolts 8.6” (21.9cm) 35” (88.9cm) 0.3” (0.6cm)
200 Series Bollard, Base Type 3 MBO-0200-00009 200 Series - 200 Bollard: H.S. Steel Tube, Cast Aluminum Top and Base, Base Type 3 - Removable 8.6” (21.9cm) 35” (88.9cm) 0.3” (0.6cm) 70lbs (31.8kg)
MBO-0200-00010: 200 Series Bollard, Base Type 3, Eyebolts MBO-0200-00010 200 Series - 200 Bollard: H.S. Steel Tube, Cast Aluminum Top and Base, Base Type 3 - Removable, Eyebolts 8.6” (21.9cm) 35” (88.9cm) 0.3” (0.6cm)
200 Series Bollard, Base Type 4 MBO-0200-00013 200 Series - 200 Bollard: H.S. Steel Tube, Cast Aluminum Top and Base, Base Type 4 - Removable 8.6” (21.9cm) 35” (88.9cm) 0.3” (0.6cm) 95lbs (43.1kg)
MBO-0200-00014: 200 Series Bollard, Base Type 4, Eye Bolts MBO-0200-00014MBO-0200-00018 MBO-0200-00014 200 Series - 200 Bollard: H.S. Steel Tube, Cast Aluminum Top and Base, Base Type 4 - Removable, EyeboltsMBO-0200-00018 200 Series - 200 Bollard: H.S. Steel Tube, Cast Aluminum Top and Base, Base Type 4 - Removable, Swing Gate 8.6” (21.9cm) 35” (88.9cm) 0.3” (0.6cm)

Downloads
