1100 Series

1100 Cluster Seating

Create a space for people to gather in style and comfort with the 1100 Series – 1100 Cluster Seating unit. Available in backed or backless options, the table top and seats of the unit are manufactured using sleek lasered steel panels and wood surface materials. Create a welcoming, accessible and fun spot for everyone by specifying wheelchair accessibility and optional game board.

Click Quick Quote to receive model number and pricing.

Quick Links

Product Info

Material Options
  • Metal
  • Ipe Wood
  • Thermally Modified Ash Wood
Options
  • Surface Mount
  • Backless Seats
  • Backed Seats
  • Wheelchair Accessible
  • Game Board
  • Umbrella Hole
Finishes

All steel components are protected with E-Coat Rust Proofing. The Maglin Powdercoat System provides a durable finish on all metal surfaces. Ipe wood slats are finished with penetrating sealers.

Installation

The 1100 Series - 1100 Cluster Seating units are delivered pre-assembled.

Standard Powdercoat Colors
Gloss Collection
Green
RAL 6037
Turquoise
RAL 5018
Reseda Green
RAL 6011
Pastel Blue
RAL 5024
Blue
RAL 5005
Violet Blue
RAL 5000
Red
RAL 3002
Orange
RAL 2009
Saffron Yellow
RAL 1017
Yellow
RAL 1018
White
RAL 9016
Black
Gunmetal
Titanium
Silver 14
Bronze 14
Fine Textured Collection* (matte finish)
Black
Gunmetal
Titanium
Silver 14
Bronze 14
Corten
Due to variations in screen resolution, color swatches may vary slightly from actual colors. Please contact Maglin for samples. *Fine Textured Paint available for an upcharge. Not available on metal table tops and stacking chairs, or for vinyl graphic application.
Download Color Chart

Dimensions

Thermally Modified Ash Wood
Image Model Description Height Length Seat Height Weight Width
MTB-1100-00038 1100 Series - 1100 Cluster Seating: H.S. Steel Tube Frame, Thermally Modified Ash Wood Table Top and Attached Backless Seats (3), Surface Mount, Wheelchair Accessible 73.4” (186.4cm)
MTB-1100-00039MTB-1100-00042 MTB-1100-00039 1100 Series - 1100 Cluster Seating: H.S. Steel Tube Frame, Thermally Modified Ash Wood Table Top and Attached Backless Seats (3), Surface Mount, Wheelchair Accessible, Game BoardMTB-1100-00042 1100 Series - 1100 Cluster Seating: H.S. Steel Tube Frame, Thermally Modified Ash Wood Table Top and Attached Backless Seats (4), Surface Mount, Game Board 73.4” (186.4cm)
MTB-1100-00040 1100 Series - 1100 Cluster Seating: H.S. Steel Tube Frame, Thermally Modified Ash Wood Table Top and Attached Backless Seats (3), Surface Mount, Wheelchair Accessible, Umbrella Hole 73.4” (186.4cm)
MTB-1100-00041: 1100 Series Cluster Seating, Thermally Modified Ash Wood, Surface Mount MTB-1100-00041 1100 Series - 1100 Cluster Seating: H.S. Steel Tube Frame, Thermally Modified Ash Wood Table Top and Attached Backless Seats (4), Surface Mount 30.9” (78.4cm) 73.4” (186.4cm) 18.9” (48.1cm) 73.4” (186.4cm)
MTB-1100-00043 1100 Series - 1100 Cluster Seating: H.S. Steel Tube Frame, Thermally Modified Ash Wood Table Top and Attached Backless Seats (4), Surface Mount, Umbrella Hole 30.9” (78.4cm) 73.4” (186.4cm) 18.9” (48.1cm) 73.4” (186.4cm)
Metal
Image Model Description Height Length Seat Height Weight Width

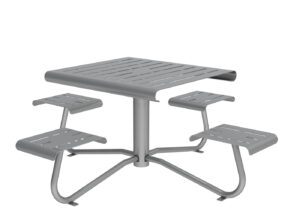

Metal Table with attached seats (no backs) MTB-1100-00001 1100 Series - 1100 Cluster Seating: H.S. Steel Tube Frame, Lasered Steel Table Top and Attached Backless Seats (4), Surface Mount 30” (76.2cm) 76.8” (194.9cm) 17.5” (44.5cm) 204.1lbs (92.6kg) 76.8” (194.9cm)

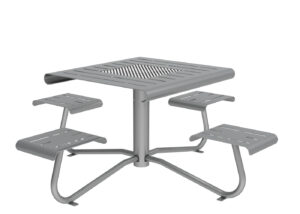

MTB-1100-00002 1100 Series - 1100 Cluster Seating: H.S. Steel Tube Frame, Lasered Steel Table Top and Attached Backless Seats (4), Surface Mount, Game Board 30” (76.2cm) 76.8” (194.9cm) 17.5” (44.5cm) 199.8lbs (90.6kg) 76.8” (194.9cm)
MTB-1100-00003 1100 Series - 1100 Cluster Seating: H.S. Steel Tube Frame, Lasered Steel Table Top and Attached Backless Seats (4), Surface Mount, Umbrella Hole 30” (76.2cm) 76.8” (194.9cm) 17.5” (44.5cm) 204.1lbs (92.6kg) 76.8” (194.9cm)
Wheelchair accessible metal table in silver MTB-1100-00004 1100 Series - 1100 Cluster Seating: H.S. Steel Tube Frame, Lasered Steel Table Top and Attached Backless Seats (3), Surface Mount, Wheelchair Accessible 30” (76.2cm) 76.8” (194.9cm) 17.5” (44.5cm) 179.7lbs (81.5kg) 56.4” (143.2cm)

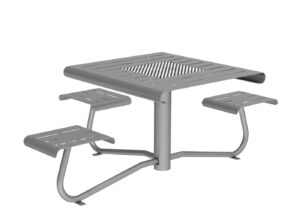

MTB-1100-00005 1100 Series - 1100 Cluster Seating: H.S. Steel Tube Frame, Lasered Steel Table Top and Attached Backless Seats (3), Surface Mount, Wheelchair Accessible, Game Board 30” (76.2cm) 76.8” (194.9cm) 17.5” (44.5cm) 56.4” (143.2cm)
MTB-1100-00006 1100 Series - 1100 Cluster Seating: H.S. Steel Tube Frame, Lasered Steel Table Top and Attached Backless Seats (3), Surface Mount, Wheelchair Accessible, Umbrella Hole 30” (76.2cm) 76.8” (194.9cm) 17.5” (44.5cm) 179.7lbs (81.5kg) 56.4” (143.2cm)

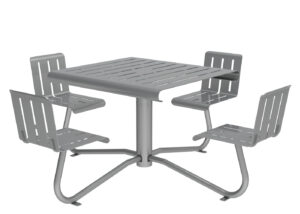

Metal Table with Metal chairs attached in grey MTB-1100-00017 1100 Series - 1100 Cluster Seating: H.S. Steel Tube Frame, Lasered Steel Table Top and Attached Backed Seats (4), Surface Mount 30” (76.2cm) 81.3” (206.4cm) 17.5” (44.5cm) 233.8lbs (106.0kg) 81.3” (206.4cm)

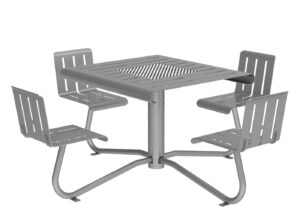

MTB-1100-00018 1100 Series - 1100 Cluster Seating: H.S. Steel Tube Frame, Lasered Steel Table Top and Attached Backed Seats (4), Surface Mount, Game Board 30” (76.2cm) 81.3” (206.4cm) 17.5” (44.5cm) 81.3” (206.4cm)

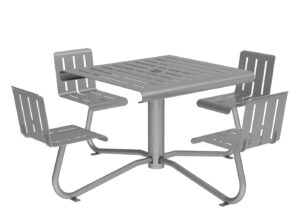

MTB-1100-00020 1100 Series - 1100 Cluster Seating: H.S. Steel Tube Frame, Lasered Steel Table Top and Attached Backed Seats (4), Surface Mount, Umbrella Hole 30” (76.2cm) 81.3” (206.4cm) 17.5” (44.5cm) 233.8lbs (106.0kg) 81.3” (206.4cm)

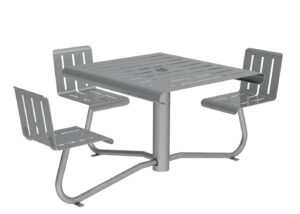

Metal Table with Metal chairs attached in grey MTB-1100-00021 1100 Series - 1100 Cluster Seating: H.S. Steel Tube Frame, Lasered Steel Table Top and Attached Backed Seats (3), Surface Mount, Wheelchair Accessible 30” (76.2cm) 81.3” (206.4cm) 17.5” (44.5cm) 202lbs (91.6kg) 58.6” (148.9cm)
MTB-1100-00022 1100 Series - 1100 Cluster Seating: H.S. Steel Tube Frame, Lasered Steel Table Top and Attached Backed Seats (3), Surface Mount, Wheelchair Accessible, Game Board 30” (76.2cm) 81.3” (206.4cm) 17.5” (44.5cm) 58.6” (148.9cm)
MTB-1100-00023 1100 Series - 1100 Cluster Seating: H.S. Steel Tube Frame, Lasered Steel Table Top and Attached Backed Seats (3), Surface Mount, Wheelchair Accessible, Umbrella Hole 30” (76.2cm) 81.3” (206.4cm) 17.5” (44.5cm) 202lbs (91.6kg) 58.6” (148.9cm)
Ipe Wood
Image Model Description Height Length Seat Height Weight Width

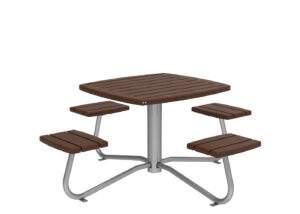

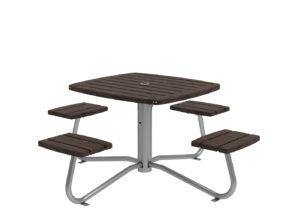

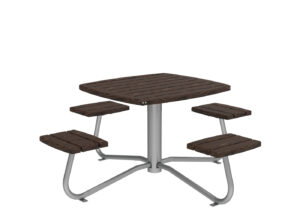

Table with attached seats (without backs) in brown MTB-1100-00011 1100 Series - 1100 Cluster Seating: H.S. Steel Tube Frame, Ipe Wood Table Top and Attached Backless Seats (4), Surface Mount 30.9” (78.4cm) 73.4” (186.4cm) 18.9” (48.1cm) 206.9lbs (93.8kg) 73.4” (186.4cm)

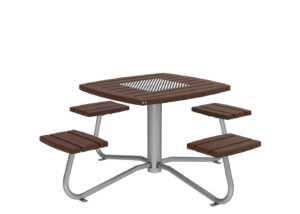

MTB-1100-00012 1100 Series - 1100 Cluster Seating: H.S. Steel Tube Frame, Ipe Wood Table Top and Attached Backless Seats (4), Surface Mount, Game Board 30.9” (78.4cm) 73.4” (186.4cm) 18.9” (48.1cm) 73.4” (186.4cm)

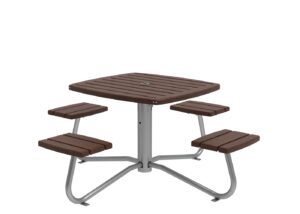

MTB-1100-00013 1100 Series - 1100 Cluster Seating: H.S. Steel Tube Frame, Ipe Wood Table Top and Attached Backless Seats (4), Surface Mount, Umbrella Hole 30.9” (78.4cm) 73.4” (186.4cm) 18.9” (48.1cm) 206.9lbs (93.8kg) 73.4” (186.4cm)

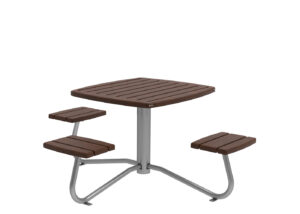

Wheelchair accessible picnic table in brown MTB-1100-00014 1100 Series - 1100 Cluster Seating: H.S. Steel Tube Frame, Ipe Wood Table Top and Attached Backless Seats (3), Surface Mount, Wheelchair Accessible 30.9” (78.4cm) 73.4” (186.4cm) 18.9” (48.1cm) 178.6lbs (81.0kg) 54.3” (137.8cm)
MTB-1100-00015 1100 Series - 1100 Cluster Seating: H.S. Steel Tube Frame, Ipe Wood Table Top and Attached Backless Seats (3), Surface Mount, Wheelchair Accessible, Game Board 30.9” (78.4cm) 73.4” (186.4cm) 18.9” (48.1cm) 54.3” (137.8cm)
MTB-1100-00016 1100 Series - 1100 Cluster Seating: H.S. Steel Tube Frame, Ipe Wood Table Top and Attached Backless Seats (3), Surface Mount, Wheelchair Accessible, Umbrella Hole 30.9” (78.4cm) 73.4” (186.4cm) 18.9” (48.1cm) 178.6lbs (81.0kg) 54.3” (137.8cm)
